2ZR-FE STARTING  ENGINE SWITCH  REMOVAL


PROCEDURE

Hide 55435B 1.REMOVE NO.1 METER HOOD CLUSTER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 55317A 2.REMOVE INSTRUMENT SIDE PANEL RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 55404E 3.REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 55405B 4.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 55410C 5.REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 55545 6.REMOVE FUSE BOX OPENING COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 55447C 7.REMOVE NO.2 SWITCH HOLE BASE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 89611 8.REMOVE ENGINE SWITCH

a.
A288523

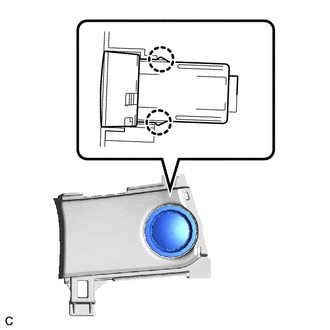

Disengage the 2 claws and remove the engine switch from the No. 2 switch hole base.
