INTERIOR PANELS / TRIM  UPPER INSTRUMENT PANEL  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.


NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION


Hide 55435B 3.REMOVE NO. 1 METER HOOD CLUSTER

a.

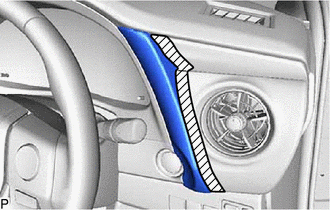

B456367C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape to the area shown in the illustration.


b.
B456368

Using a moulding remover, disengage the 3 clips to remove the No. 1 meter hood cluster.


Hide 62311B 4.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

a.

Disconnect the front door opening trim weatherstrip RH.


Hide 55317A 5.REMOVE INSTRUMENT SIDE PANEL RH

a.

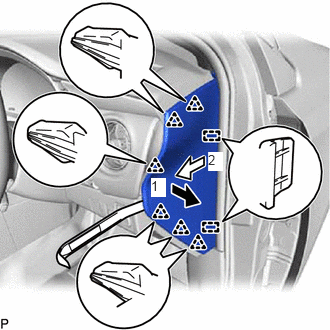

B456370N01
1.573,1.854 1.729,2.052 0.156,0.198 10 true 1 2.167,1.583 2.323,1.781 0.156,0.198 10 true 2

Using a moulding remover, disengage the 6 clips in the direction indicated by the arrow (1).


b.

Pull the instrument side panel RH in the direction indicated by the arrow (2) to disengage the 2 guides and remove the instrument side panel RH.


Hide 55404E 6.REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

B456372

a.

Disengage the 4 clips to remove the upper instrument cluster finish panel sub-assembly.


Hide 55405B 7.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

a.

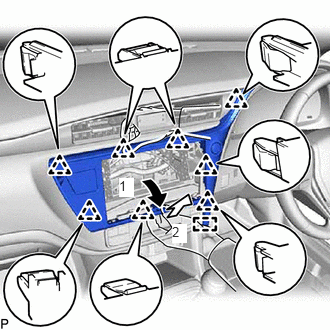

B480699N01
1.24,1.854 1.396,2.052 0.156,0.198 10 true 1 1.792,2.333 1.948,2.531 0.156,0.198 10 true 2

Pull the center instrument cluster finish panel sub-assembly in the direction indicated by the arrow (1) to disengage the 8 clips.


b.

Pull the center instrument cluster finish panel sub-assembly in the direction indicated by the arrow (2) to disengage the guide.


c.

Disconnect each connector to remove the center instrument cluster finish panel sub-assembly.


Hide 55410C 8.REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

a.

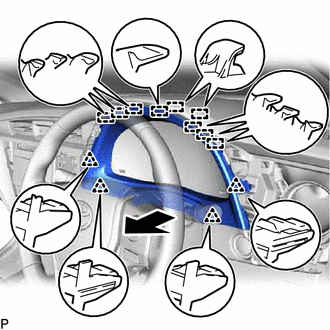

B456375

Disengage the 4 clips and 9 guides to remove the instrument cluster finish panel assembly as shown in the illustration.


Hide 83100 9.REMOVE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL

Hide 62211U 10.REMOVE FRONT PILLAR GARNISH ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL

Hide 62312B 11.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

a.

Disconnect the front door opening trim weatherstrip LH.


Hide 55318C 12.REMOVE INSTRUMENT SIDE PANEL LH

a.

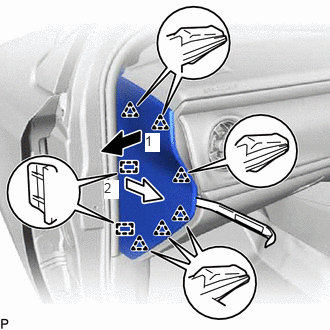

B456377N01
1.51,1.385 1.667,1.583 0.156,0.198 10 true 1 1.083,1.875 1.24,2.073 0.156,0.198 10 true 2

Using a moulding remover, disengage the 6 clips in the direction indicated by the arrow (1).


b.

Pull the instrument side panel LH in the direction indicated by the arrow (2) to disengage the 2 guides and remove the instrument side panel LH.


Hide 55403F 13.REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

a.
B480701

Disengage the 17 clips to remove the instrument panel finish panel sub-assembly as shown in the illustration.


Hide 62212B 14.REMOVE FRONT PILLAR GARNISH ASSEMBLY LH

HINT:

Use the same procedure as for the RH side.


Hide 55412C 15.REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

a.
B480703

Using a moulding remover, disengage the 6 claws and 7 clips to remove the center No. 1 instrument cluster finish panel.


Hide 82142A 16.DISCONNECT NO. 2 INSTRUMENT PANEL WIRE

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT PASSENGER AIRBAG ASSEMBLY>REMOVAL

Hide 17.REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

a.

Disconnect each connector.


b.

Remove the bolt <A> and 2 clips.

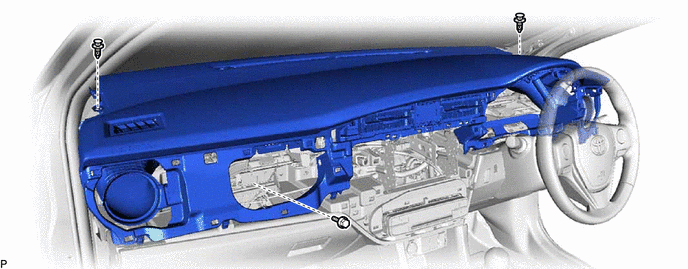

B480705


c.

Pull the upper instrument panel assembly in the direction indicated by the arrow (1) to disengage the 6 clips.

B480706N01
4.396,2.073 4.552,2.271 0.156,0.198 10 true 1 3.271,1.5 3.427,1.698 0.156,0.198 10 true 2


d.

Pull the upper instrument panel assembly in the direction indicated by the arrow (2) to disengage the 5 guides and remove the upper instrument panel assembly.
