TIRE / WHEEL  TIRE AND WHEEL SYSTEM  INSPECTION


PROCEDURE

Hide 1.INSPECT TIRES

a.

Inspect the tires for wear and proper inflation pressure.

Cold Tire Inflation Pressure:
Tire Size Cold Tire Inflation Pressure
Front Rear
195/65R15 91H 210 kPa (2.1 kgf/cm2, 30 psi) 210 kPa (2.1 kgf/cm2, 30 psi)
205/55R16 91V 230 kPa (2.3 kgf/cm2, 33 psi) 230 kPa (2.3 kgf/cm2, 33 psi)



b.
C137874

Using a dial indicator, check the runout of the tires.

Maximum Tire Runout:

1.4 mm (0.0551 in.)



Hide 2. ROTATE TIRES

a.

Remove the wheel assembly.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL


b.
C143305C02
2.896,0.396 3.146,0.573 0.25,0.177 10 false A 2.896,1.458 3.146,1.635 0.25,0.177 10 false B
V100135

Front

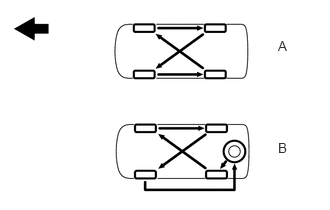

If the spare tire uses a different type of wheel than the other tires, rotate the tires as shown by (A) in the illustration. If the spare tire has the same type of wheel as the other tires, rotate the tires, including the spare tire, as shown by (B) in the illustration.


c.

Install the wheel assembly.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>INSTALLATION


Hide 3.INSPECT AND ADJUST WHEEL BALANCE

a.

Inspect and adjust the off-the-car balance.

i.

for Steel Wheel:

Maximum Imbalance:

8.0 g (0.0176 lb)


HINT:

Use clip-on type balance weights for both the inner and outer side.



ii.
C144018C01
2.052,3.667 2.281,3.823 0.229,0.156 10 false *a
*a 25 mm (0.984 in.)


except Steel Wheel:

Maximum Imbalance:

8.0 g (0.0176 lb)


NOTICE:
·

Use a cleaning detergent to remove dirt, oil and water from the surface where the balance weight is to be adhered.

·

Do not touch the adhesive surface of the balance weight.

·

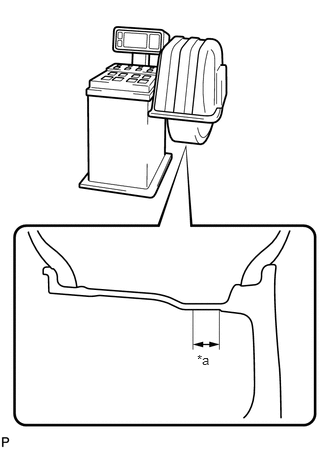

Adhere a stick-on type balance weight to the flat surface*a shown in the illustration.

·

Push the balance weight with your finger to securely adhere it to the desired position.

·

Do not reuse balance weights.



HINT:

Use clip-on type balance weights for the inner side, and stick-on type balance weights for the outer side.
