FRONT SUSPENSION  FRONT SHOCK ABSORBER  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 48158C 1.INSTALL FRONT LOWER COIL SPRING INSULATOR

a.

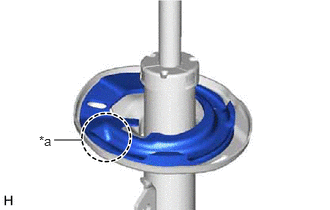

C289362C01
0.563,1.458 0.854,1.458 true 0.406,1.385 0.719,1.542 0.313,0.156 10 false *a
*a Depression


Install the front lower coil spring insulator to the front shock absorber assembly.

NOTICE:

When installing the front lower coil spring insulator, fit the insulator to the depression of the spring seat.



Hide 48331C 2.INSTALL FRONT SPRING BUMPER

a.
C291317

Install the front spring bumper to the front shock absorber assembly.

NOTICE:

Face the smaller diameter end of the front spring bumper downward.



Hide 48132 3.INSTALL FRONT COIL SPRING

a.
C287918N04
2.427,1.281 2.427,0.979 2.427,0.979 2.688,0.979 false 2.729,0.906 3.188,1.104 0.458,0.198 10 false SST

For SST with stopper pins:

i.

Secure SST in a vise.

SST
09727-30022  (09727-00010, 09727-00022, 09727-00031)


ii.

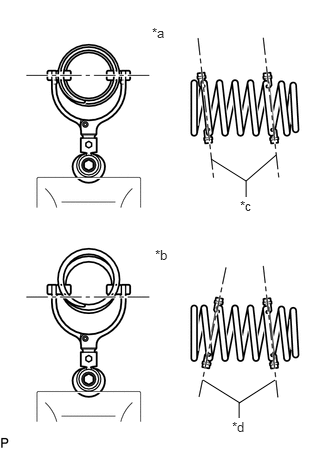

C302414C01
2.563,1.885 2.198,1.656 false 2.563,2.052 2.563,1.885 2.563,1.885 2.875,1.615 false 2.49,4.354 2.49,4.198 2.49,4.198 2.865,3.958 false 2.5,4.198 2.115,3.958 false 1.583,0.26 1.896,0.417 0.313,0.156 10 false *a 1.615,2.573 1.927,2.729 0.313,0.156 10 false *b 2.5,2.063 2.813,2.219 0.313,0.156 10 false *c 2.417,4.365 2.729,4.521 0.313,0.156 10 false *d
*a Correct
*b Incorrect
*c Parallel
*d Not Parallel


Attach the hooks of each SST arm across the diameter of the coil spring.

CAUTION:
·

Make sure that the hooks of the upper and lower arms are attached to the coil spring so that the distance between the hooks is as large as possible.

·

Make sure that the arms of SST are parallel and attached to the coil spring, and the number of coil springs between the hooks on each side is the same.

·

Check that the claws of the hooks are securely attached to the coil spring.




iii.
C302415C01
1.469,1.469 1.469,1.01 false 3.135,1.479 3.135,1.021 false 0.219,0.063 0.531,0.219 0.313,0.156 10 false *a 1.76,0.073 2.073,0.229 0.313,0.156 10 false *b 1.406,1.479 1.719,1.635 0.313,0.156 10 false *c 3.073,1.49 3.385,1.646 0.313,0.156 10 false *c
*a Correct
*b Incorrect
*c Stopper Pin


Install the stopper pins to the hooks of SST.

CAUTION:

Make sure that the stopper pins are installed securely.



iv.

Using SST, compress the coil spring.

CAUTION:
·

If the coil spring bends while using SST, stop immediately and reattach SST correctly.

·

Do not compress the coil spring to the point where the coils touch each other.

·

Do not use an impact wrench.

·

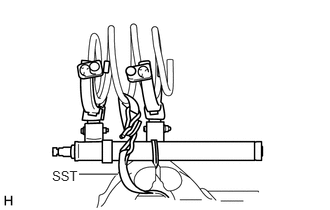

C302420N01
0.823,1.813 1.229,1.813 true 0.542,1.75 1,1.948 0.458,0.198 10 false SST

If a stopper pin touches the coil spring while using SST, remove the stopper pin and continue with the procedure. In this case, installing the coil spring stopper belt as shown in the illustration is recommended.



SST
09727-00110



b.

For SST without stopper pins:

i.
C288500N06
2.406,1.26 2.406,0.969 2.406,0.969 2.667,0.969 false 2.698,0.896 3.156,1.094 0.458,0.198 10 false SST

Secure SST in a vise.

SST
09727-30021  (09727-00010, 09727-00021, 09727-00031)


ii.
C302414C01
2.563,1.885 2.198,1.656 false 2.563,2.052 2.563,1.885 2.563,1.885 2.875,1.615 false 2.49,4.354 2.49,4.198 2.49,4.198 2.865,3.958 false 2.5,4.198 2.115,3.958 false 1.583,0.26 1.896,0.417 0.313,0.156 10 false *a 1.615,2.573 1.927,2.729 0.313,0.156 10 false *b 2.5,2.063 2.813,2.219 0.313,0.156 10 false *c 2.417,4.365 2.729,4.521 0.313,0.156 10 false *d
*a Correct
*b Incorrect
*c Parallel
*d Not Parallel


Attach the hooks of each SST arm across the diameter of the coil spring.

CAUTION:
·

Make sure that the hooks of the upper and lower arms are attached to the coil spring so that the distance between the hooks is as large as possible.

·

Make sure that the arms of SST are parallel and attached to the coil spring, and the number of coil springs between the hooks on each side is the same.

·

Check that the claws of the hooks are securely attached to the coil spring.




iii.

Using SST, compress the coil spring.

CAUTION:
·

If the coil spring bends while using SST, stop immediately and reattach SST correctly.

·

Do not compress the coil spring to the point where the coils touch each other.

·

Do not use an impact wrench.



HINT:

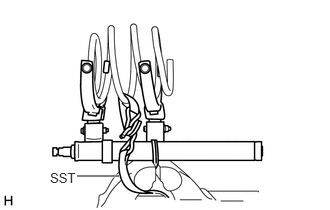

C302421N01
0.802,1.833 1.24,1.833 true 0.521,1.771 0.979,1.969 0.458,0.198 10 false SST

Installing SST as shown in the illustration is recommended.


SST
09727-00110



c.

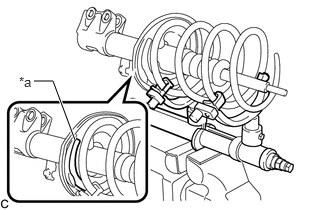

C289377C01
0.354,0.844 0.552,0.844 0.552,0.844 0.781,1.458 true 0.198,0.771 0.51,0.927 0.313,0.156 10 false *a
*a Depression


Install the front coil spring to the front shock absorber assembly.

NOTICE:

Make sure to fit the end of the front coil spring that has the larger diameter into the depression of the front lower coil spring insulator.



Hide 48157C 4.INSTALL FRONT UPPER COIL SPRING INSULATOR

a.

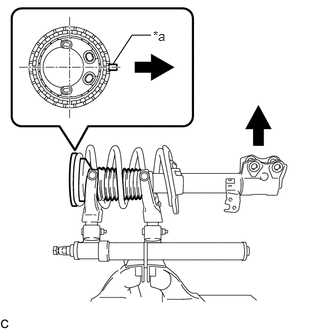

C289811C01
1.177,0.667 1.375,0.365 1.375,0.365 1.573,0.365 false 1.594,0.292 1.906,0.448 0.313,0.156 10 false *a
*a Protrusion
V100135

Outside of the Vehicle


Install the front upper coil spring insulator to the front shock absorber assembly with the protrusion on the insulator facing the outside of the vehicle.


Hide 48471C 5.INSTALL FRONT UPPER COIL SPRING SEAT

a.

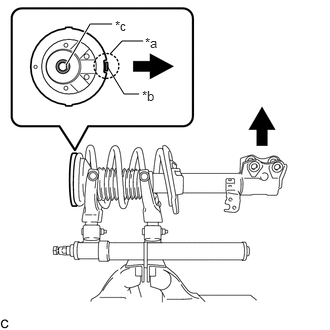

C289812C01
1.448,0.979 1.292,0.979 1.292,0.979 1.115,0.688 false 1.49,0.427 1.271,0.427 1.271,0.427 1.146,0.563 false 1.167,0.25 0.938,0.25 0.938,0.25 0.688,0.677 true 1.51,0.365 1.823,0.521 0.313,0.156 10 false *a 1.479,0.917 1.792,1.073 0.313,0.156 10 false *b 1.198,0.188 1.51,0.344 0.313,0.156 10 false *c
*a Cutout
*b Protrusion
*c Slot
V100135

Outside of the Vehicle


Install the front upper coil spring seat to the front shock absorber assembly.

NOTICE:
·

Align the cutout of the front upper coil spring seat with the protrusion on the front upper coil spring insulator.

·

When installing, align the slot on the front upper coil spring seat and the front shock absorber piston rod end.




Hide 48609D 6.INSTALL FRONT SUSPENSION SUPPORT DUST SEAL

a.

Install a new front suspension support dust seal to the front upper coil spring seat.


Hide 48609 7.INSTALL FRONT SUSPENSION SUPPORT SUB-ASSEMBLY

a.

Install the front suspension support sub-assembly to the front shock absorber assembly.


Hide 48680A 8.TEMPORARILY TIGHTEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

a.

Temporarily tighten a new front support to front shock absorber nut.


b.

Remove SST from the front coil spring.

NOTICE:

Do not use an impact wrench. It will damage SST.



Hide 9.INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING

a.

Install the front shock absorber with coil spring (upper side) and front spring support reinforcement with the 3 nuts.

Torque:
50 N*m (510 kgf*cm, 37 ft.*lbf)


b.

Install the front shock absorber with coil spring (lower side) to the steering knuckle with the 2 bolts and 2 nuts.

Torque:
240 N*m (2447 kgf*cm, 177 ft.*lbf)

NOTICE:

When installing the nuts, keep the bolts from rotating.


HINT:

Insert the bolts from the front of the vehicle.



Hide 48680A 10.FULLY TIGHTEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

a.

Fully tighten the front support to front shock absorber nut.

Torque:
47 N*m (479 kgf*cm, 35 ft.*lbf)


b.

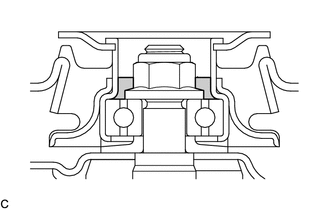

C269427C01
2.063,0.802 2.052,0.802 false
V100145

MP Grease


Apply MP grease to the front suspension support sub-assembly.

NOTICE:

Do not contaminate the rubber portions of the front suspension support sub-assembly with MP grease.



Hide 48684B 11.INSTALL FRONT SUSPENSION SUPPORT DUST COVER

a.

Install the front suspension support dust cover.


Hide 47313J 12.INSTALL FRONT FLEXIBLE HOSE (w/o ABS)

a.

Install the front flexible hose to the front shock absorber assembly with the bolt.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)

NOTICE:

Do not twist the front flexible hose when installing it.



Hide 89543 13.INSTALL FRONT SPEED SENSOR (w/ ABS)

a.

Install the front speed sensor and front flexible hose to the front shock absorber assembly with the bolt.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)

NOTICE:

Do not twist the front speed sensor and front flexible hose when installing them.


HINT:

Install the front speed sensor harness bracket first and then the front flexible hose.



Hide 48810 14.INSTALL FRONT STABILIZER LINK ASSEMBLY

a.

Install the front stabilizer link assembly to the front shock absorber assembly with the nut.

Torque:
74 N*m (755 kgf*cm, 55 ft.*lbf)

HINT:

If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud bolt.



Hide 55701J 15.INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE MASTER CYLINDER>INSTALLATION

Hide 55737B 16.INSTALL NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE MASTER CYLINDER>INSTALLATION

Hide 55734A 17.INSTALL WATER GUARD PLATE RH

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE MASTER CYLINDER>INSTALLATION

Hide 18.INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>INSTALLATION

Hide 19.INSTALL FRONT WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>INSTALLATION

Hide 20.STABILIZE SUSPENSION

a.

Lower the vehicle.


b.

Bounce the vehicle up and down several times to stabilize the suspension.


Hide 21.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

Click hereSuspension>ALIGNMENT / HANDLING DIAGNOSIS>FRONT WHEEL ALIGNMENT>ADJUSTMENT
