WIPER / WASHER  FRONT WIPER MOTOR  INSTALLATION


PROCEDURE

Hide 85110 1.INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY

a.

Install the windshield wiper motor assembly with the 3 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


b.

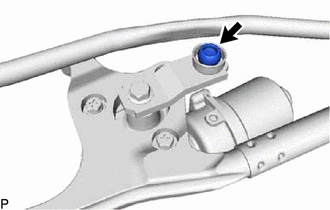

E284188
2.26,0.552 2.813,0.573 true 2.906,0.49 3.219,0.646 0.313,0.156 10 false *a
*a Pivot of the windshield wiper motor assembly


Apply MP grease to the pivot of the windshield wiper motor assembly.


c.
E284189
1.698,0.74 2.385,0.521 true 2.188,0.927 2.781,0.729 false 2.823,0.625 3.135,0.781 0.313,0.156 10 false *a 2.427,0.417 2.74,0.573 0.313,0.156 10 false *b
*a No. 1 Windshield Wiper Link Rod
*b Pivot of the windshield wiper motor assembly


Connect the No. 1 windshield wiper link rod to the pivot of the windshield wiper motor assembly.


Hide 2.INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

a.

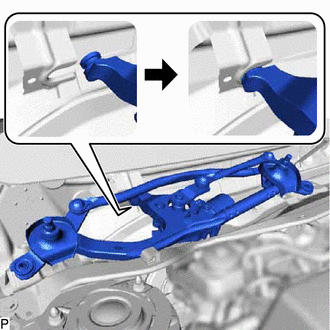

E284190
0.625,0.417 0.927,0.594 true 0.406,0.302 0.719,0.458 0.313,0.156 10 true *a
*a Motor Grommet


Engage the motor grommet as shown in the illustration.

NOTICE:

Be careful not to damage the windshield glass when installing the windshield wiper motor and link assembly.



b.

Install the windshield wiper motor and link assembly with the 2 bolts.

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)


c.

Engage the 2 clamps.


d.

Connect the connector.


Hide 55781E 3.INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

a.

Engage the 8 guides as shown in the illustration.

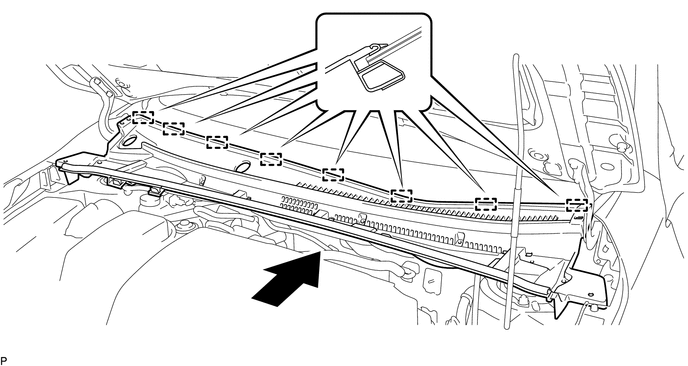

E284191


b.

Engage the 3 guides and 6 claws to install the cowl top ventilator louver sub-assembly as shown in the illustration.

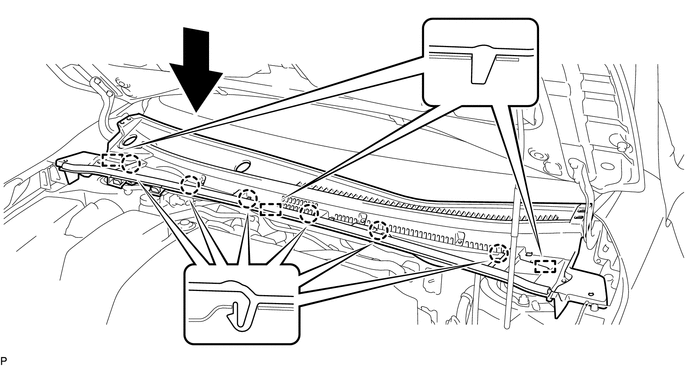

E284192


c.

Install the 2 clips.


Hide 53155C 4.INSTALL NO. 1 RADIATOR GRILLE SEAL (for RH Side)

a.

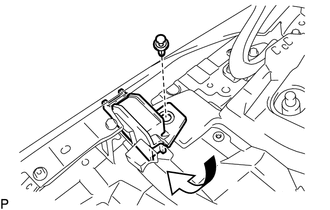

E284193

Install the No. 1 radiator grille seal as shown in the illustration.


b.

Install the clip.


Hide 53155C 5.INSTALL NO. 1 RADIATOR GRILLE SEAL (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 53821A 6.INSTALL FRONT NO. 1 SIDE PANEL PROTECTOR RH

a.

Clean the front fender.

i.

Remove the double-sided tape from the front fender.


ii.

Wipe off any tape adhesive residue with cleaner.



b.

Remove the release paper from a new front No. 1 side panel protector RH.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



c.

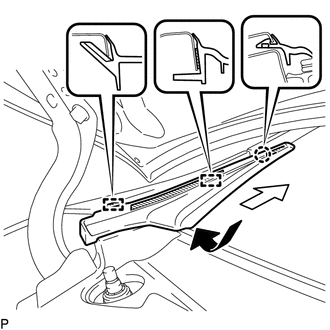

E284194
2.094,2.729 2.333,2.979 0.24,0.25 10 false 1 2.865,2.167 3.104,2.417 0.24,0.25 10 false 2

Engage the claw and 2 guides as shown in the illustration.


d.

Engage the 2 claws and guide.


e.

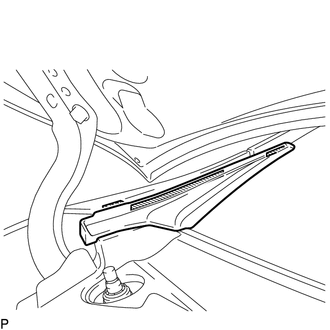

E284195
0,0 0,0 false
V100155

Double-sided Tape


Engage the double-sided tape to install the front No. 1 side panel protector RH.


Hide 53822A 7.INSTALL FRONT NO. 1 SIDE PANEL PROTECTOR LH

HINT:

Use the same procedure as for the RH side.


Hide 8.INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH

a.

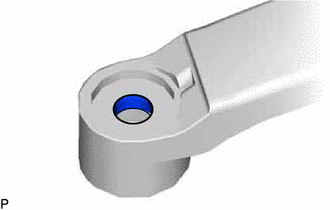

E280775
0.396,0.854 1.302,1.042 true 0.208,0.74 0.521,0.896 0.313,0.156 10 false *a
*a Wiper Arm Serration


When reusing the windshield wiper arm and blade assembly RH:

i.

Clean the wiper arm serrations to remove any burrs, dirt, etc.

NOTICE:

Do not grind down the wiper arm serrations.




b.
E280773
1.875,1.313 2.583,1.135 true 2.635,1 2.948,1.156 0.313,0.156 10 false *a
*a Wiper Pivot Serration


When reusing the windshield wiper link assembly:

i.

Clean the wiper pivot serrations with a wire brush.



c.

Operate the wiper and stop the windshield wiper motor assembly at the automatic stop position.


d.
E284196
1.25,3.073 1.417,2.833 false 1.167,3.083 1.479,3.24 0.313,0.156 10 false *a 1.719,2.594 1.875,2.792 0.156,0.198 10 false A 1.708,2.917 1.865,3.115 0.156,0.198 10 false A
*a Dot


Install the windshield wiper arm and blade assembly RH with the nut to the position shown in the illustration.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)

HINT:

Hold the wiper arm by hand while tightening the nut.


Reference Measurement:
Area Measurement
A 10.0 mm (0.394 in.)



Hide 9.INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH

a.
E280775
0.396,0.854 1.302,1.042 true 0.208,0.74 0.521,0.896 0.313,0.156 10 false *a
*a Wiper Arm Serration


When reusing the windshield wiper arm and blade assembly LH:

i.

Clean the wiper arm serrations to remove any burrs, dirt, etc.

NOTICE:

Do not grind down the wiper arm serrations.




b.

When reusing the windshield wiper link assembly:

i.
E280773
1.875,1.313 2.583,1.135 true 2.635,1 2.948,1.156 0.313,0.156 10 false *a
*a Wiper Pivot Serration


Clean the wiper pivot serrations with a wire brush.



c.

Operate the wiper and stop the windshield wiper motor assembly at the automatic stop position.


d.

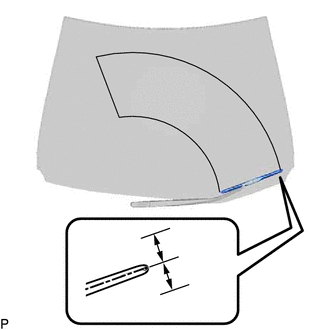

E284197
1.448,3.042 1.521,2.781 false 1.344,3.073 1.656,3.229 0.313,0.156 10 false *a 1.75,2.458 1.906,2.656 0.156,0.198 10 false A 1.833,2.74 1.99,2.938 0.156,0.198 10 false A
*a Dot


Install the windshield wiper arm and blade assembly LH with the nut to the position shown in the illustration.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)

HINT:

Hold the wiper arm by hand while tightening the nut.


Reference Measurement:
Area Measurement
A 10.0 mm (0.394 in.)



e.

Turn the ignition switch to ON.


f.

Operate the windshield wiper while spraying washer fluid onto the windshield glass. Make sure that the windshield wiper functions properly and the wiper does not come into contact with the vehicle body.


g.

Lift each wiper arm twice after the wipers stop and check the wiper set position.


h.

Turn the ignition switch off.


Hide 85292B 10.INSTALL FRONT WIPER ARM HEAD CAP

a.

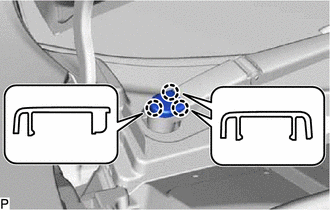

E284198

Engage the 3 claws to install the front wiper arm head cap.

HINT:

Use the same procedure for the RH side and LH side.
