NETWORKING  CAN COMMUNICATION SYSTEM  Steering Angle Sensor Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Steering Angle Sensor Communication Stop Mode Either condition is met:
·

"Spiral cable (Steering Angle Sensor)" is not displayed on the CAN Bus Check screen of the GTS.

Click here(Click here)

·

Communication system DTCs (DTCs that start with U) that correspond to "Steering Angle Sensor Communication Stop Mode" in "DTC Combination Table" are output.

Click here(Click here)


·

Steering sensor branch line or connector

·

Power source circuit of steering sensor

·

Steering sensor ground circuit

·

Steering sensor



WIRING DIAGRAM

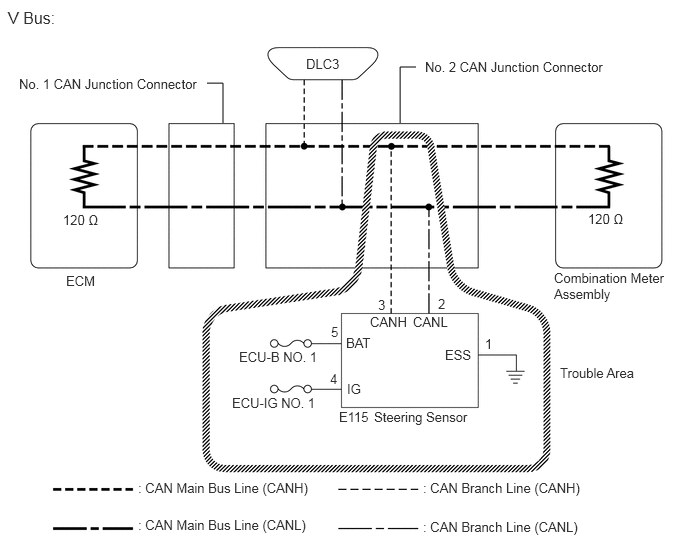

C375452E03
4.167,1.281 4.167,0.698 4.167,0.698 4.333,0.698 false 2.323,1.281 2.323,0.865 2.323,0.865 2.156,0.865 false 0.083,0.083 1.188,0.323 1.104,0.24 12 false V Bus: 0.198,0.792 2.229,1.073 2.031,0.281 10 false No. 1 CAN Junction Connector 4.427,0.615 6.458,0.896 2.031,0.281 10 false No. 2 CAN Junction Connector 3.188,0.583 3.688,0.833 0.5,0.25 10 false DLC3 0.656,2.208 1.156,2.458 0.5,0.25 10 false 120 Ω 6.125,2.198 6.625,2.448 0.5,0.25 10 false 120 Ω 0.688,2.844 1.188,3.094 0.5,0.25 10 false ECM 5.771,2.813 6.938,3.313 1.167,0.5 10 false Combination Meter Assembly 3.854,3.271 4.354,3.521 0.5,0.25 10 false CANH 4.302,3.271 4.802,3.521 0.5,0.25 10 false CANL 3.938,3.094 4.438,3.344 0.5,0.25 10 false 3 4.563,3.083 5.063,3.333 0.5,0.25 10 false 2 4.635,3.615 5.135,3.865 0.5,0.25 10 false ESS 5.052,3.5 5.552,3.75 0.5,0.25 10 false 1 3.604,3.49 4.104,3.74 0.5,0.25 10 false BAT 3.615,3.969 4.115,4.219 0.5,0.25 10 false IG 3.448,3.375 3.948,3.625 0.5,0.25 10 false 5 3.438,3.865 3.938,4.115 0.5,0.25 10 false 4 2.49,3.635 3.469,3.885 0.979,0.25 10 false ECU-B NO. 1 2.417,4.115 3.521,4.375 1.104,0.26 10 false ECU-IG NO. 1 3.531,4.26 4.031,4.51 0.5,0.25 10 false E115 3.896,4.26 5.094,4.531 1.198,0.271 10 false Steering Sensor 5.833,3.802 6.792,4.125 0.958,0.323 10 false Trouble Area 1.438,5 3.354,5.25 1.917,0.25 10 false : CAN Main Bus Line (CANH) 1.438,5.385 3.354,5.635 1.917,0.25 10 false : CAN Main Bus Line (CANL) 4.406,5 6.323,5.25 1.917,0.25 10 false : CAN Branch Line (CANH) 4.406,5.406 6.323,5.656 1.917,0.25 10 false : CAN Branch Line (CANL)

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

·

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

·

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>DIAGNOSIS SYSTEM

·

Inspect the fuses for circuits related to this system before performing the following procedure.



HINT:
·

Operating the ignition switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

·

Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS LINES (STEERING SENSOR BRANCH LINE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.

Disconnect the E115 steering sensor connector.


c.

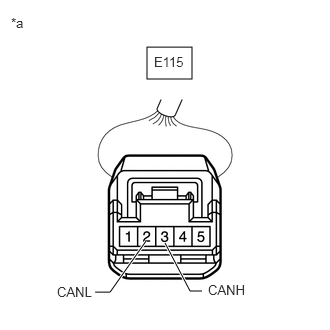

C289260C18
1.531,0.49 2,0.823 0.469,0.333 0.99,3.042 1.146,3.042 1.146,3.042 1.521,2.51 true 2.104,3.031 1.979,3.031 1.979,3.031 1.719,2.531 true 0.115,0.156 0.427,0.354 0.313,0.198 10 false *a 1.604,0.563 2.063,0.76 0.458,0.198 10 false E115 0.594,2.958 1.208,3.156 0.615,0.198 10 false CANL 2.167,2.938 2.781,3.135 0.615,0.198 10 false CANH
*a Front view of wire harness connector
(to Steering Sensor)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E115-3 (CANH) - E115-2 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Result
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (STEERING SENSOR)

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

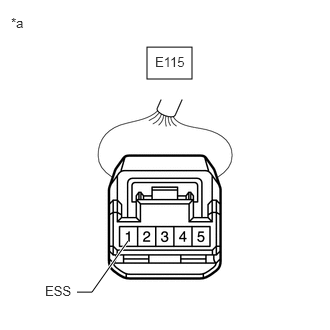

C289260C19
1.531,0.49 2,0.823 0.469,0.333 0.802,3.042 0.958,3.042 0.958,3.042 1.333,2.51 true 0.115,0.156 0.427,0.354 0.313,0.198 10 false *a 1.615,0.563 2.073,0.76 0.458,0.198 10 false E115 0.469,2.948 1.083,3.146 0.615,0.198 10 false ESS
*a Front view of wire harness connector
(to Steering Sensor)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E115-1 (ESS) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) battery terminal.


c.

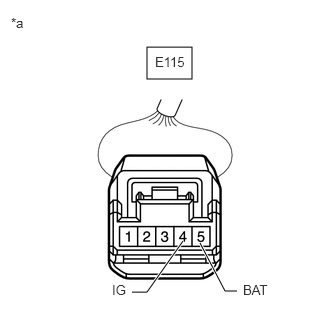

C289260C20
1.531,0.49 2,0.823 0.469,0.333 1.375,3.042 1.531,3.042 1.531,3.042 1.906,2.51 true 2.469,3.031 2.344,3.031 2.344,3.031 2.083,2.531 true 0.115,0.156 0.427,0.354 0.313,0.198 10 false *a 1.615,0.563 2.073,0.76 0.458,0.198 10 false E115 1.167,2.938 1.781,3.135 0.615,0.198 10 false IG 2.531,2.938 2.927,3.135 0.396,0.198 10 false BAT
*a Front view of wire harness connector
(to Steering Sensor)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
E115-4 (IG) - Body ground Ignition switch ON 11 to 14 V
E115-5 (BAT) - Body ground Always 11 to 14 V



Result:
Result
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
