BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  STEERING ANGLE SENSOR  REMOVAL


CAUTION / NOTICE / HINT

NOTICE:

If both the spiral cable sub-assembly and the steering sensor are malfunctioning, replace them with a new spiral cable with sensor sub-assembly.


PROCEDURE

Hide 84307 1.REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>REMOVAL

Hide 89245B 2.REMOVE STEERING SENSOR

a.
C238435

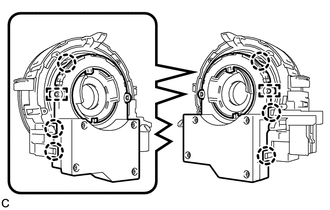

Disengage the 6 claws and 2 pins to remove the steering sensor from the spiral cable sub-assembly.

NOTICE:

Do not damage the claws and pins of the spiral cable sub-assembly.
