LIGHTING (INT) LIGHTING SYSTEM Interior Light Circuit
DESCRIPTION
The main body ECU (multiplex network body ECU) controls the operation of the following lights:
Key Cylinder Light Assembly*2
Transponder Key Coil*3
No. 1 Room Light Assembly*1
*1: for Slide Switch Type
*2: w/o Immobiliser System
*3: w/ Immobiliser System

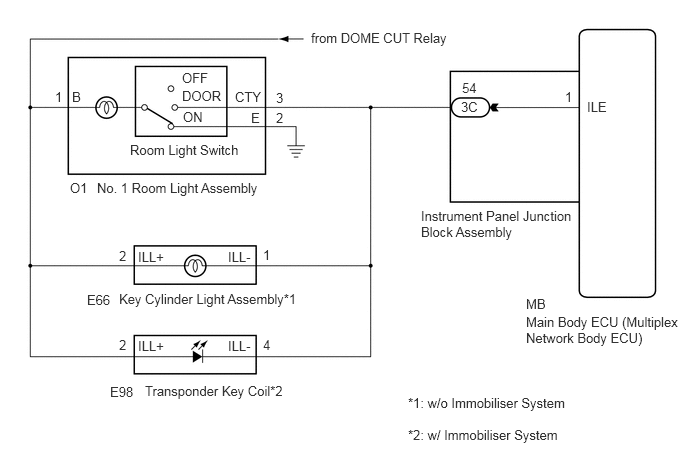

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- HINT:
-
The DOME CUT relay supplies power to the interior lights. If all the lights that use power from the DOME CUT relay do not turn on, check the interior light auto cut circuit first.
-
Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM>Interior Light Auto Cut Circuit
PROCEDURE
Choose the model to be inspected.
- Result:
Result Proceed to w/o Immobiliser System A w/ Immobiliser System B
A
B
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Enter the following menus: Body Electrical / Main Body / Active Test.
Perform the Active Test according to the display on the GTS.
- Body Electrical > Main Body > Active Test
-
Tester Display Measurement Item Control Range Diagnostic Note Illuminated Entry System Turns on the lights that are controlled by the illuminated entry system*1 ON or OFF -
*1: Refer to System Description for the lights that are controlled by the illuminated entry system.
Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM>SYSTEM DESCRIPTION
- Body Electrical > Main Body > Active Test
-
Tester Display Illuminated Entry System - 50004 123 4
- OK:
All lights that are controlled by the illuminated entry system come on.
- Result:
Result Proceed to OK A NG (No. 1 room light does not come on) B NG (Key cylinder light does not come on) C NG (No. 1 room light and key cylinder light do not come on) D
A
B
C
D
Disconnect the E66 key cylinder light assembly connector.
Disconnect the 3C instrument panel junction block assembly connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition 3C-54 - Body ground Battery saving function not operating, No. 1 room light assembly switch in DOOR position 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
Remove the instrument panel junction block assembly.
Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL
Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL
Measure the resistance according to the value(s) in the table below.

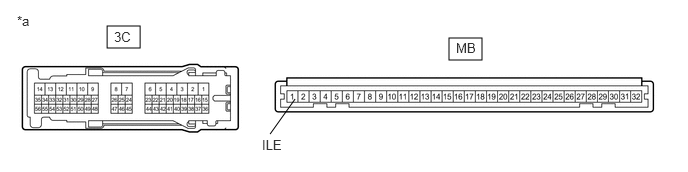

| *a | Component without harness connected
(Instrument Panel Junction Block Assembly) |
- | - |
- Standard Resistance:
Tester Connection Condition Specified Condition 3C-54 - MB-1 (ILE) Always Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
Disconnect the E66 key cylinder light assembly connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition E66-2 (ILL+) - Body ground Battery saving function not operating 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
Disconnect the 3C instrument panel junction block assembly connector.
Disconnect the O1 No. 1 room light assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 3C-54 - E66-1 (ILL-) Always Below 1 Ω 3C-54 or E66-1 (ILL-) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
Remove the key cylinder light assembly.
Click hereVehicle Interior>LIGHTING (INT)>IGNITION KEY CYLINDER LIGHT>REMOVAL
Inspect the key cylinder light assembly.
Click hereVehicle Interior>LIGHTING (INT)>IGNITION KEY CYLINDER LIGHT>INSPECTION
- Result:
Proceed to OK NG
OK
Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING
NG
Disconnect the 3C instrument panel junction block assembly connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition 3C-54 - Body ground Battery saving function not operating, No. 1 room light assembly switch in DOOR position 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
Remove the instrument panel junction block assembly.
Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL
Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL
Measure the resistance according to the value(s) in the table below.
| *a | Component without harness connected
(Instrument Panel Junction Block Assembly) |
- | - |
- Standard Resistance:
Tester Connection Condition Specified Condition 3C-54 - MB-1 (ILE) Always Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Enter the following menus: Body Electrical / Main Body / Active Test.
Perform the Active Test according to the display on the GTS.
- Body Electrical > Main Body > Active Test
-
Tester Display Measurement Item Control Range Diagnostic Note Illuminated Entry System Turns on the lights that are controlled by the illuminated entry system*1 ON or OFF -
*1: Refer to System Description for the lights that are controlled by the illuminated entry system.
Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM>SYSTEM DESCRIPTION
- Body Electrical > Main Body > Active Test
-
Tester Display Illuminated Entry System - 50004 123 4
- OK:
All lights that are controlled by the illuminated entry system come on.
- Result:
Result Proceed to OK A NG (No. 1 room light does not come on) B NG (Transponder key coil does not come on) C NG (No. 1 room light and key cylinder light do not come on) D
A
B
C
D
Disconnect the E98 transponder key coil connector.
Disconnect the 3C instrument panel junction block assembly connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition 3C-54 - Body ground Battery saving function not operating, No. 1 room light assembly switch in DOOR position 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
Remove the instrument panel junction block assembly.
Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL
Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL
Measure the resistance according to the value(s) in the table below.
| *a | Component without harness connected
(Instrument Panel Junction Block Assembly) |
- | - |
- Standard Resistance:
Tester Connection Condition Specified Condition 3C-54 - MB-1 (ILE) Always Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
Disconnect the E98 transponder key coil connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition E98-2 (ILL+) - Body ground Battery saving function not operating 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
Disconnect the 3C instrument panel junction block assembly connector.
Disconnect the O1 No. 1 room light assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 3C-54 - E98-4 (ILL-) Always Below 1 Ω 3C-54 or E98-4 (ILL-) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
Remove the transponder key coil.
Click hereVehicle Interior>LIGHTING (INT)>IGNITION KEY CYLINDER LIGHT>REMOVAL
Inspect the transponder key coil.
Click hereVehicle Interior>LIGHTING (INT)>IGNITION KEY CYLINDER LIGHT>INSPECTION
- Result:
Proceed to OK NG
OK
Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING
NG
Disconnect the 3C instrument panel junction block assembly connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition 3C-54 - Body ground Battery saving function not operating, No. 1 room light assembly switch in DOOR position 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
Remove the instrument panel junction block assembly.
Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL
Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL
Measure the resistance according to the value(s) in the table below.
| *a | Component without harness connected
(Instrument Panel Junction Block Assembly) |
- | - |
- Standard Resistance:
Tester Connection Condition Specified Condition 3C-54 - MB-1 (ILE) Always Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
