LIGHTING (INT)  IGNITION KEY CYLINDER LIGHT  REMOVAL


PROCEDURE

Hide 45287 1.REMOVE LOWER STEERING COLUMN COVER

Click hereVehicle Exterior>WIPER / WASHER>WIPER SWITCH>REMOVAL

Hide 81870D 2.REMOVE KEY CYLINDER LIGHT ASSEMBLY

a.

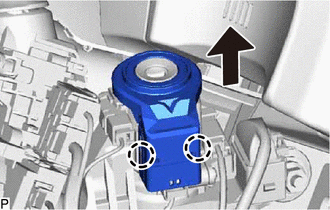

B351860

Disengage the 2 claws and disconnect the key cylinder light assembly as shown in the illustration.


b.

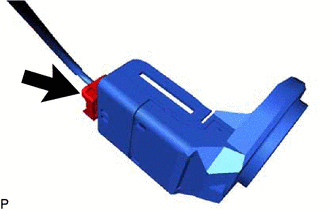

B351862

Disconnect the connector to remove the key cylinder light assembly.
