WIPER / WASHER  WIPER SWITCH  REMOVAL


PROCEDURE

Hide 45287 1.REMOVE LOWER STEERING COLUMN COVER

NOTICE:

Removing the lower steering column cover in the incorrect order will cause the parts to break.


a.

Release the tilt lever, and fully extend and lower the steering column.


b.

Lock the tilt lever.


c.

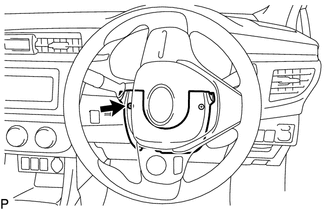

E294798

Turn the steering wheel assembly to the left and remove the screw.


d.

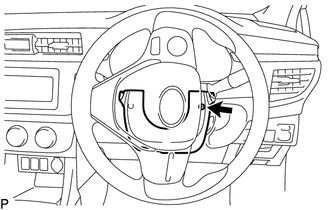

E294799

Turn the steering wheel assembly to the right and remove the screw.


e.

Turn the steering wheel assembly back to the center.


f.

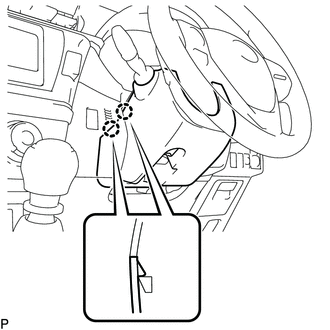

E294810

Disengage the 2 claws.


g.

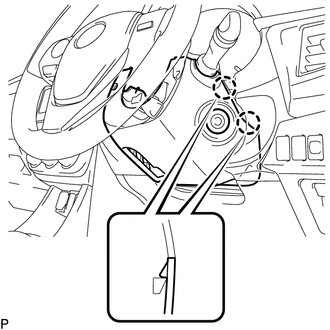

E294811

Disengage the 2 claws.


h.

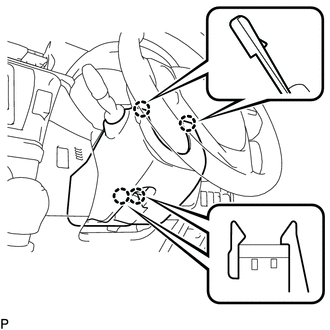

E294812
1.885,1.344 0.833,1.25 0.833,1.25 1.406,1.146 true 1.167,2 0.75,1.75 0.75,1.75 1.427,1.969 true 0.552,1.635 0.781,1.792 0.229,0.156 10 true *a 0.625,1.167 0.875,1.333 0.25,0.167 10 true *b
*a Claw (A)
*b Claw (B)


Insert your fingers into the opening for the tilt lever on the lower steering column cover and disengage the 2 claws (A).

HINT:

Spread the claws to disengage them.



i.

Disengage the 2 claws (B) to remove the lower steering column cover.


Hide 45286B 2.REMOVE UPPER STEERING COLUMN COVER

a.

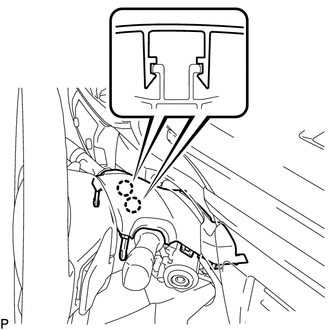

E284208

Disengage the 2 claws and remove the upper steering column cover.


Hide 84650 3.REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

a.

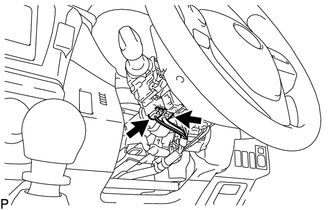

E294800

Disconnect each connector.


b.

Turn the steering wheel assembly to the left.


c.

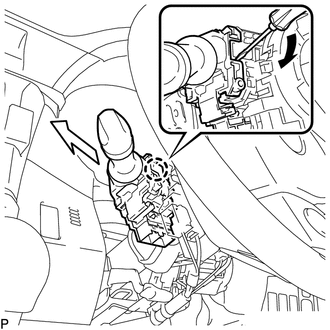

E293643
2.188,0.188 2.813,0.188 false 2.01,0.104 2.323,0.26 0.313,0.156 10 false *a
*a Screwdriver


Using a screwdriver, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

NOTICE:

If the claw is pulled with excessive force, it may break.
