*a	Length of SST 30 mm (1.18 in.)
*b	Length of Torque Wrench 260 mm (10.2 in.)

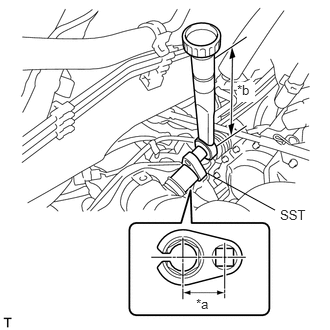

Using SST, install the air fuel ratio sensor to the exhaust manifold.

SST

09224-00010

Torque:

without SST [Torque (N*m (kgf*cm, ft.*lbf))] : 44 N*m (449 kgf*cm, 32 ft.*lbf)

with SST [Reading of Torque wrench (N*m (kgf*cm, ft.*lbf))] : 39 N*m (398 kgf*cm, 29 ft.*lbf)

NOTICE:

If the air fuel ratio sensor has been struck or dropped, replace it.

HINT:

·

This torque value is effective when SST is parallel to the torque wrench.

·

The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).

·

The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 260 mm (10.2 in.).

·

If using a torque wrench with a different length, or connecting the torque wrench and SST at an angle, refer to the alternate torque values.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION
