2NZ-FE ENGINE CONTROL  ENGINE COOLANT TEMPERATURE SENSOR  REMOVAL


PROCEDURE

Hide 11212 2.REMOVE NO. 2 CYLINDER HEAD COVER

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 17705 3.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>2NZ-FE ENGINE CONTROL>THROTTLE BODY>REMOVAL

Hide 17701 4.REMOVE AIR CLEANER CASE SUB-ASSEMBLY

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 89422 5.REMOVE ENGINE COOLANT TEMPERATURE SENSOR

a.
A155438

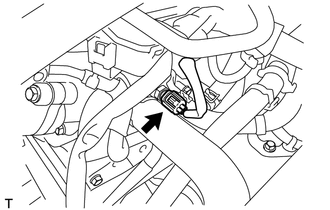

Disconnect the engine coolant temperature sensor connector.


b.
A185464

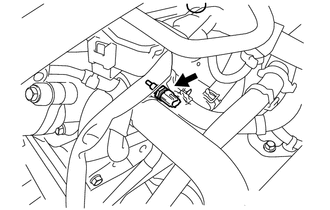

Using a 19 mm union nut wrench, remove the engine coolant temperature sensor from the cylinder head sub-assembly.

NOTICE:

If the engine coolant temperature sensor has been struck or dropped, replace it.



c.

Remove the gasket from the engine coolant temperature sensor.
