*1	Water By-pass Hose

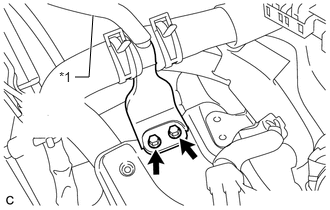

Remove the 2 bolts and separate the radiator hose from the battery carrier.

NOTICE:

Do not disconnect the water by-pass hose.

1.458,0.792 0.729,0.198 0.729,0.198 0.833,0.563 true 3.042,1.198 3.125,0.458 3.125,0.458 2.479,0.729 true 0.51,0.073 0.698,0.25 0.188,0.177 10 true *a 3.167,0.323 3.385,0.531 0.219,0.208 10 false *b

*a	Wire Harness Clamp
*b	Vacuum Hose Clamp

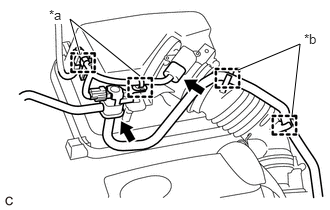

Disconnect the mass air flow meter sub-assembly connector and disengage the 2 wire harness clamps.

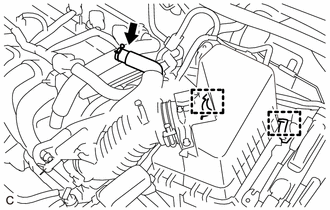

Disengage the 2 air cleaner cap clamps.

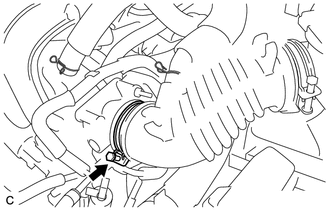

Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body with motor assembly.

for Manual Transaxle:

i.

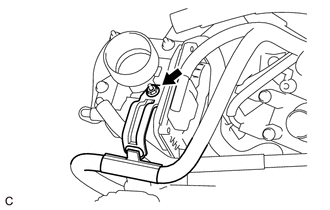

Remove the nut and separate the wire harness clamp bracket from the throttle body with motor assembly.

2.063,1.365 2.625,1.854 2.625,1.854 2.833,1.854 true 0.875,0.656 1.24,0.656 true 2.896,1.781 3.208,1.938 0.313,0.156 10 false *1 0.656,0.573 0.854,0.771 0.198,0.198 10 true *2

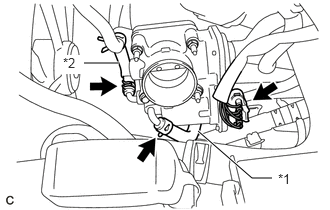

*1	No. 1 Water By-pass Hose
*2	No. 2 Water By-pass Hose

Disconnect the throttle body with motor assembly connector.

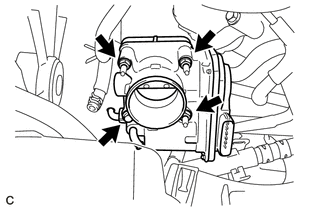

Remove the bolt, 3 nuts and throttle body with motor assembly from the intake manifold.

NOTICE:

If the throttle body with motor assembly has been struck or dropped, replace it.

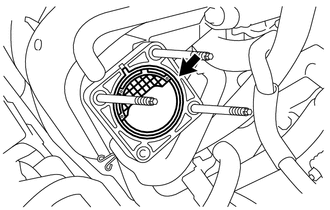

Remove the throttle body gasket from the intake manifold.
