2NZ-FE ENGINE CONTROL  CAMSHAFT POSITION SENSOR  REMOVAL


PROCEDURE

Hide 11212 1.REMOVE NO. 2 CYLINDER HEAD COVER

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 17705 2.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>2NZ-FE ENGINE CONTROL>THROTTLE BODY>REMOVAL

Hide 17701 3.REMOVE AIR CLEANER CASE SUB-ASSEMBLY

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 11101E 4.REMOVE CAMSHAFT POSITION SENSOR

a.

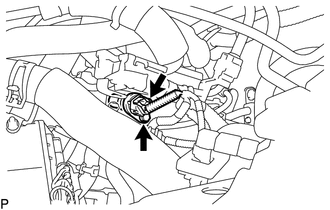

A104511

Disconnect the camshaft position sensor connector.


b.

Remove the bolt and camshaft position sensor from the cylinder head sub-assembly.

NOTICE:

If the camshaft position sensor has been struck or dropped, replace it.
