2NZ-FE ENGINE CONTROL  CAMSHAFT OIL CONTROL VALVE  REMOVAL


PROCEDURE

Hide 11212 1.REMOVE NO. 2 CYLINDER HEAD COVER

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 27020 2.REMOVE GENERATOR ASSEMBLY

Click herePower Source / Network>2NZ-FE BATTERY / CHARGING>GENERATOR>REMOVAL

Hide 11101J 3.REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

a.

Disconnect the camshaft timing oil control valve assembly connector.


b.

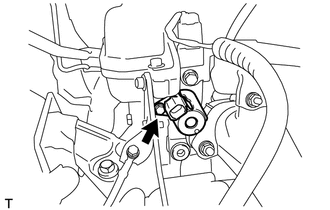

A155436

Remove the bolt and camshaft timing oil control valve assembly from the cylinder head sub-assembly.

NOTICE:
·

Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with the cylinder head sub-assembly).

·

If the camshaft timing oil control valve assembly has been struck or dropped, replace it.




c.

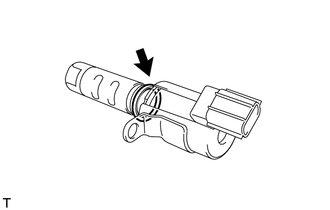

A116179

Remove the O-ring from the camshaft timing oil control valve assembly.
