2NZ-FE BATTERY / CHARGING  GENERATOR  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION


Hide 27020 4.REMOVE GENERATOR ASSEMBLY

a.

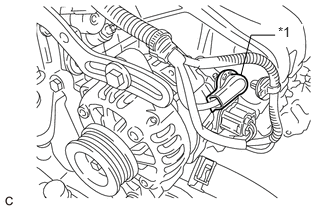

A325636C01
2.51,0.781 2.615,0.365 2.615,0.365 2.865,0.365 false 2.896,0.25 3.156,0.49 0.26,0.24 10 true *1
*1 Terminal Cap


Remove the terminal cap.


b.

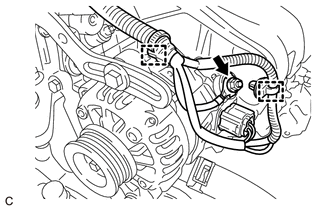

A325637

Remove the nut and disconnect the wire harness from terminal B.


c.

Disconnect the generator assembly connector and disengage the 2 wire harness clamps.


d.

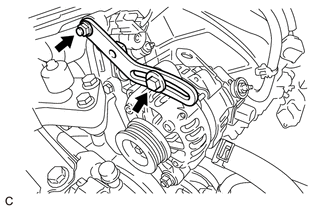

A325638

Remove the bolt, nut and adjusting bar.


e.

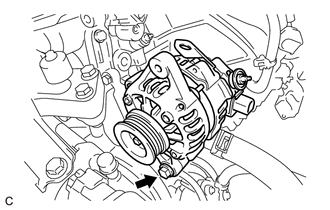

A325639

Remove the bolt and generator assembly.
