LIGHTING (EXT)  HEADLIGHT DIMMER SWITCH  REMOVAL


PROCEDURE

Hide 84306 1.REMOVE SPIRAL CABLE SUB-ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>REMOVAL

Hide 84650 2.REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>WIPER SWITCH>REMOVAL

Hide 84140 3.REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

a.

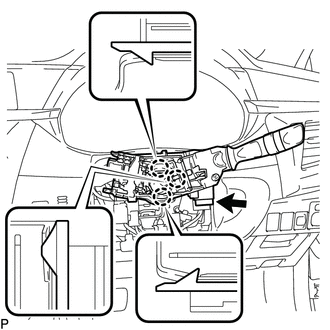

E282354

Disconnect the connector.


b.

Using a screwdriver, disengage the 3 claws to remove the headlight dimmer switch assembly.
