DOOR LOCK  DOOR CONTROL RECEIVER  REMOVAL


PROCEDURE

Hide 1.REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY(for Fixed Seat Type)>REMOVAL

Hide 2.REMOVE REAR SEAT ASSEMBLY (for Reclining Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY(for Reclining Seat Type)>REMOVAL

Hide 67918A 3.REMOVE REAR DOOR SCUFF PLATE LH

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL


Hide 62332A 4.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL


Hide 62552F 5.REMOVE REAR SEAT SIDE GARNISH LH (for Fixed Seat Type)

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL


Hide 62552F 6.REMOVE REAR SEAT SIDE GARNISH LH (for Reclining Seat Type)

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL


Hide 62480A 7.REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL


Hide 89741 8.REMOVE DOOR CONTROL RECEIVER

a.

Disconnect the connector.


b.

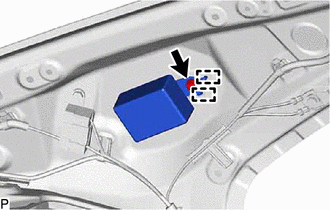

B351971

Remove the bolt.


c.

Disengage the 2 guides and remove the door control receiver.
