LIGHTING (INT)  REAR DOOR COURTESY SWITCH  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1.REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY(for Fixed Seat Type)>REMOVAL

Hide 2.REMOVE REAR SEAT ASSEMBLY (for Reclining Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY(for Reclining Seat Type)>REMOVAL

Hide 67918A 3.REMOVE REAR DOOR SCUFF PLATE

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL


Hide 62332A 4.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

a.

Disconnect the rear door opening trim weatherstrip.


Hide 62552F 5.REMOVE REAR SEAT SIDE GARNISH (for Fixed Seat Type)

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL


Hide 62552F 6.REMOVE REAR SEAT SIDE GARNISH (for Reclining Seat Type)

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL


Hide 84234 7.REMOVE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

a.

Disconnect the connector.


b.

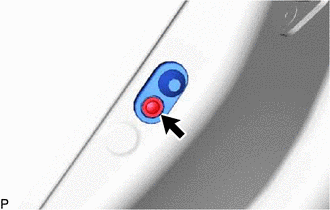

E279213

Using a T30 "TORX" socket wrench, remove the screw and rear door courtesy light switch assembly.
