U340E AUTOMATIC TRANSMISSION / TRANSAXLE  AUTOMATIC TRANSAXLE ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:

The engine assembly with automatic transaxle assembly is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop.


PROCEDURE

Hide 11361J 1.REMOVE FLYWHEEL HOUSING UNDER COVER

Click hereEngine / Hybrid System>1ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 32101A 2.REMOVE DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

a.

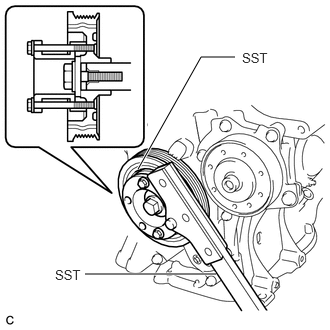

A234914N16
2.448,0.594 2.094,0.594 2.094,0.594 1.438,1.76 true 0.885,2.854 2.25,2.854 true 2.521,0.521 2.885,0.729 0.365,0.208 10 false SST 0.573,2.781 0.927,3 0.354,0.219 10 false SST

Using SST, hold the crankshaft pulley.

SST
09213-54015  09330-00021

HINT:

Part number of installation bolt for SST (crankshaft pulley holding tool): 91551-00850 (quantity: 2)



b.

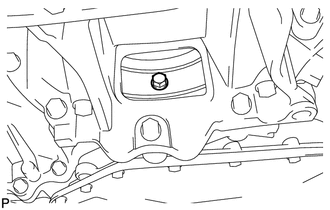

C118503

Remove the 6 drive plate and torque converter assembly setting bolts.


Hide 51201 3.REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>REMOVAL

Hide 51204A 4.REMOVE CENTER ENGINE MOUNTING MEMBER SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>REMOVAL

Hide 5.REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

Click hereEngine / Hybrid System>1ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 12361A 6.REMOVE FRONT ENGINE MOUNTING INSULATOR

Click hereEngine / Hybrid System>1ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 12371A 7.REMOVE REAR ENGINE MOUNTING INSULATOR

Click hereEngine / Hybrid System>1ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 8.REMOVE WIRE HARNESS CLAMP BRACKET

Click hereEngine / Hybrid System>1ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 10.REMOVE OIL COOLER TUBE SUB-ASSEMBLY

a.

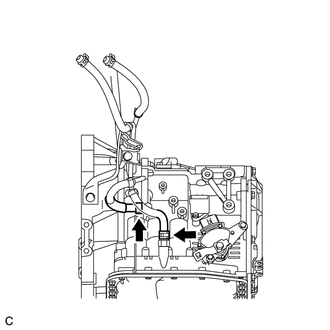

C293993

Slide the 2 clips and disconnect the oil cooler tube sub-assembly from the 2 oil cooler tube unions.


b.

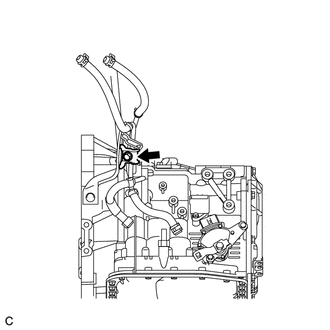

C293994

Remove the bolt and oil cooler tube sub-assembly from the transmission oil filler tube sub-assembly.


Hide 35013 11.REMOVE TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY

a.

Remove the transmission oil level gauge sub-assembly from the transmission oil filler tube sub-assembly.


b.
C293995

Remove the bolt and transmission oil filler tube sub-assembly from the automatic transaxle assembly.


c.

Using a screwdriver, remove the O-ring from the transmission oil filler tube sub-assembly.

NOTICE:

Be careful not to damage the transmission oil filler tube sub-assembly.


HINT:

Tape the screwdriver tip before use.



Hide 11363A 12.REMOVE FLYWHEEL HOUSING SIDE COVER

Click hereEngine / Hybrid System>1ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 28100 13.REMOVE STARTER ASSEMBLY

Click hereEngine / Hybrid System>1ZR-FE STARTING>STARTER>REMOVAL

Hide 33829 14.REMOVE TRANSMISSION CONTROL CABLE SUPPORT

a.

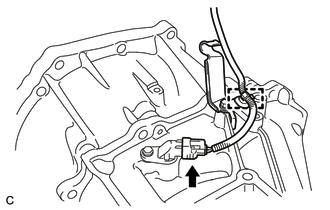

C296300

Disconnect the transmission revolution sensor connector.


b.

Disconnect the wire harness clamp from the transmission control cable support.


c.

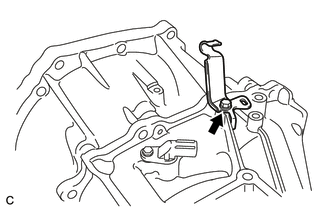

C290388

Remove the bolt and transmission control cable support from the automatic transaxle assembly.


Hide 33823 15.REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET

a.

Disconnect the park/neutral position switch assembly connector.


b.

Disconnect the transmission wire connector.


c.

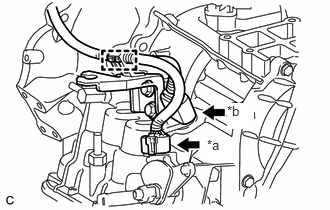

C296557C01
2.156,1.427 2.469,1.698 0.313,0.271 10 true *a 2.365,1.073 2.646,1.344 0.281,0.271 10 true *b
*a Park/Neutral Position Switch Assembly Connector
*b Transmission Wire Connector


Disconnect the wire harness clamp from the No. 1 transmission control cable bracket.


d.

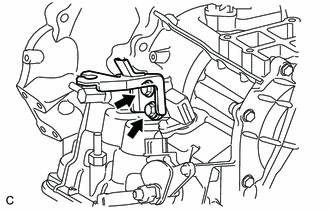

C290390

Remove the 2 bolts and No. 1 transmission control cable bracket from the automatic transaxle assembly.


Hide 30500 16.REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

a.

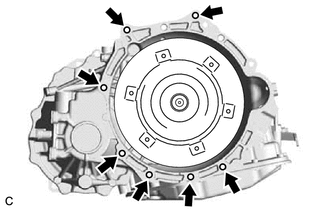

C287761

Remove the 7 bolts and automatic transaxle assembly from the engine assembly.

NOTICE:

To prevent damage to the 2 knock pins, do not pry between the automatic transaxle assembly and engine assembly.



Hide 12325A 17.REMOVE ENGINE MOUNTING BRACKET LH

a.

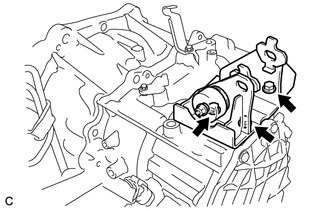

C293971

Remove the 3 bolts and engine mounting bracket LH from the automatic transaxle assembly.


Hide 12311A 18.REMOVE FRONT ENGINE MOUNTING BRACKET

a.

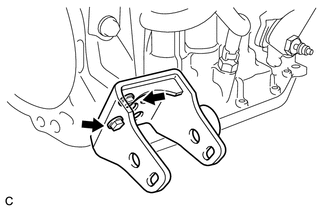

C304966

Remove the 2 bolts and front engine mounting bracket from the automatic transaxle assembly.


Hide 12321A 19.REMOVE REAR ENGINE MOUNTING BRACKET

a.

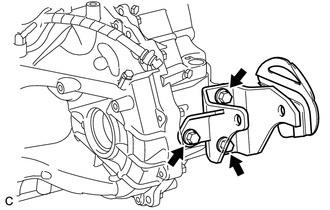

C293973

Remove the 3 bolts and rear engine mounting bracket from the automatic transaxle assembly.


Hide 33403M 20.REMOVE SPEEDOMETER DRIVEN HOLE (ATM) COVER SUB-ASSEMBLY

a.
C162524

Remove the bolt and speedometer driven hole (ATM) cover sub-assembly from the automatic transaxle assembly.


b.

Remove the O-ring from the speedometer driven hole (ATM) cover sub-assembly.


Hide 21.REMOVE WIRE HARNESS CLAMP BRACKET

a.

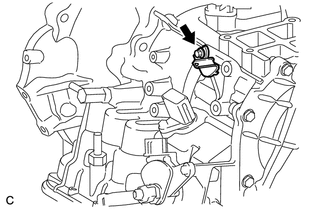

C227084

Remove the bolt and wire harness clamp bracket from the automatic transaxle assembly.


Hide 32000 22.REMOVE TORQUE CONVERTER ASSEMBLY

a.

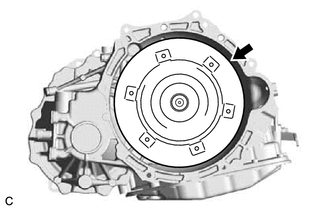

C287762

Remove the torque converter assembly from the automatic transaxle assembly.

NOTICE:

Remove the torque converter assembly from the input shaft horizontally.
