Install the O-ring to the radiator drain cock plug.

NOTICE:

Replace the O-ring if it is damaged.

Install the radiator drain cock plug.

Install the fan shroud assembly to the radiator assembly with the 2 bolts.

Torque:

7.0 N*m (71 kgf*cm, 62 in.*lbf)

NOTICE:

Make sure not to damage the radiator assembly when installing the fan shroud assembly.

Install the 2 lower radiator supports to the vehicle body.

Install the radiator assembly with the fan shroud assembly to the 2 lower radiator supports.

NOTICE:

Do not apply excessive force to the condenser assembly or pipe when installing the radiator assembly.

Engage the 2 guides to connect the condenser assembly to the fan shroud assembly.

NOTICE:

Make sure not to damage the condenser assembly or radiator assembly when installing the condenser assembly.

Engage the wire harness clamp.

Connect the cooling fan ECU connector.

Engage the 2 claws and 2 guides to install the No. 2 fan shroud to the radiator assembly.

Install the 2 bolts.

Torque:

7.0 N*m (71 kgf*cm, 62 in.*lbf)

Connect the No. 2 water by-pass hose and slide the clip to secure it.

Engage the 3 clamps.

Connect the 2 horn connectors.

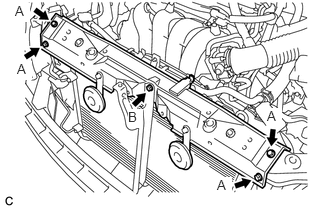

Install the radiator support cushion to each upper radiator support.

Install the 2 upper radiator supports with the 2 bolts.

Torque:

19 N*m (194 kgf*cm, 14 ft.*lbf)

Connect the oil cooler tube sub-assembly to the fan shroud assembly with the 2 bolts.

Torque:

5.5 N*m (56 kgf*cm, 49 in.*lbf)

Connect the 2 oil cooler hoses to the radiator assembly and slide the 2 clips to secure them.

Connect the No. 2 radiator hose and slide the clip to secure it.

Connect the No. 3 radiator hose and slide the clip to secure it.

Connect the radiator reservoir tank hose to the radiator assembly.
