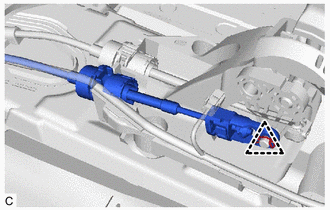

Remove the clip and disconnect the transmission control select cable from the floor shift lever assembly.

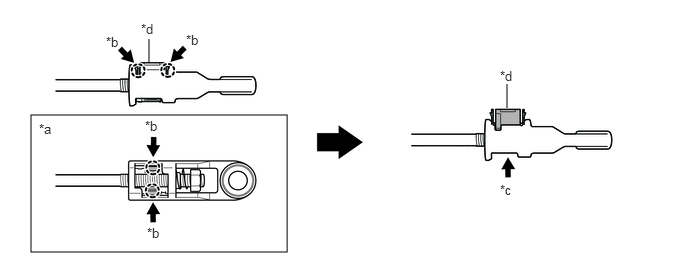

Push the 2 claws together at the top of the lock piece. While holding the 2 claws together, push the 2 lugs on the bottom of the lock piece toward each other and upward to push out the lock piece.

0.323,1.198 2.99,2.625 2.667,1.427 1.552,0.656 1.552,0.406 false 5.281,1.125 5.281,0.875 false 1.469,0.219 1.781,0.375 0.313,0.156 10 false *d 0.406,1.26 0.719,1.417 0.313,0.156 10 false *a 5.208,1.896 5.521,2.052 0.313,0.156 10 false *c 5.208,0.708 5.521,0.865 0.313,0.156 10 false *d 1.104,0.354 1.417,0.51 0.313,0.156 10 false *b 1.938,0.333 2.25,0.49 0.313,0.156 10 false *b 1.51,1.229 1.823,1.385 0.313,0.156 10 false *b 1.531,2.344 1.844,2.5 0.313,0.156 10 false *b

*a	Bottom View	*b	Push
*c	Push out	*d	Lock Piece

1.875,0.594 1.938,0.125 1.938,0.125 2.104,0.125 false 1.521,1.073 1.26,0.781 1.26,0.781 1.146,0.781 false 0.99,0.719 1.302,0.875 0.313,0.156 10 *1 2.167,0.052 2.479,0.208 0.313,0.156 10 *2 0.104,2.542 0.417,2.698 0.313,0.156 10 *a

*1	Outer Select Lever
*2	Reverse Restrict Pin Assembly
*a	Secured

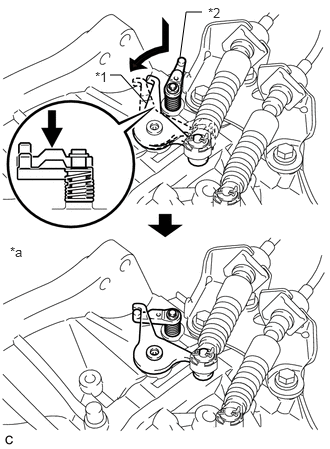

Hook the outer select lever of the manual transaxle assembly to the reverse restrict pin assembly to secure it.

0.823,2.052 0.969,2.052 false 0.625,2.271 0.729,2.271 0.729,2.271 0.75,2.438 false 0.656,1.958 0.854,2.115 0.198,0.156 10 *a 0.458,2.198 0.667,2.375 0.208,0.177 10 *b

*a	Slider Shaft
*b	Cam Wall

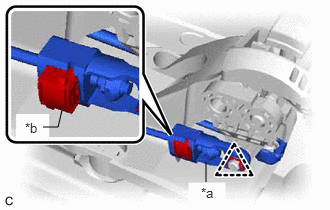

Push the slider shaft until it contacts the cam wall.

NOTICE:

·

Do not pull up the slider shaft.

·

When adjusting the transmission control cable assembly, make sure that the shift lever is not in the 1st or 2nd gear position.

2.146,1.896 2.146,1.688 false 0.448,1.323 0.604,1.323 0.604,1.323 0.646,1.146 false 2.094,1.927 2.292,2.094 0.198,0.167 10 *a 0.26,1.25 0.573,1.406 0.313,0.156 10 *b

*a	Transmission Control Select Cable
*b	Lock Piece

Connect the transmission control select cable to the floor shift lever assembly with the clip.

NOTICE:

·

Make sure that the lock piece is protruding from the adjuster case.

·

When adjusting the transmission control cable assembly, make sure that the shift lever is not in the 1st or 2nd gear position.

1.615,0.833 1.74,0.167 1.74,0.167 1.875,0.167 false 1.188,0.802 1.365,0.802 false 1,0.729 1.198,0.875 0.198,0.146 10 *1 1.938,0.104 2.115,0.26 0.177,0.156 10 *2 0.094,2.552 0.406,2.708 0.313,0.156 10 *a

*1	Outer Select Lever
*2	Reverse Restrict Pin Assembly
*a	Released

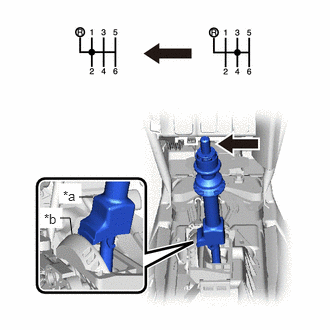

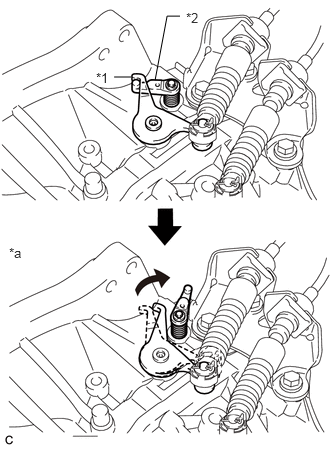

Move the shift lever to R, so that the outer select lever can be released.
