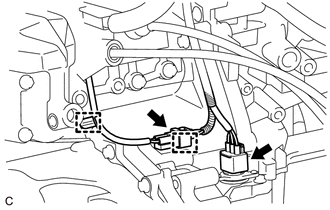

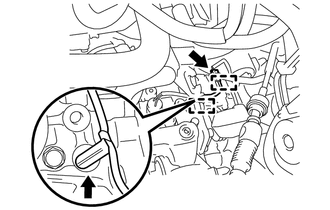

Disconnect the back-up light switch assembly connector and speedometer sensor connector, disengage the 2 clamps.

Disconnect the back-up light switch assembly connector and disengage the 2 clamps.

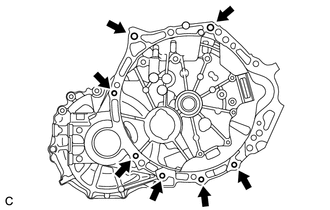

Remove the 7 bolts and manual transaxle assembly from the engine assembly.

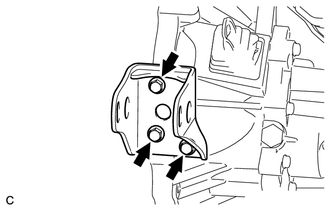

Remove the 3 bolts and front engine mounting bracket from the manual transaxle assembly.

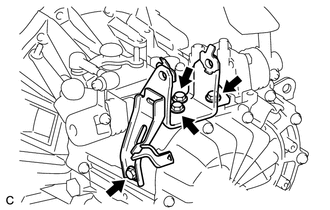

Remove the 4 bolts and engine mounting bracket LH from the manual transaxle assembly.

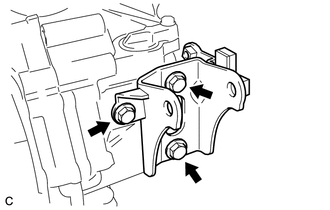

Remove the 3 bolts and rear engine mounting bracket from the manual transaxle assembly.

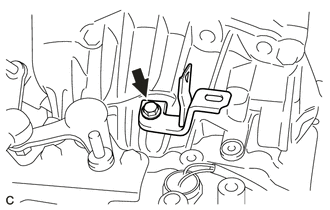

Remove the bolt and wire harness clamp bracket from the manual transaxle assembly.

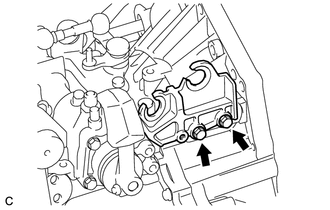

Remove the 2 bolts and floor shift control lever housing support bracket from the manual transaxle assembly.

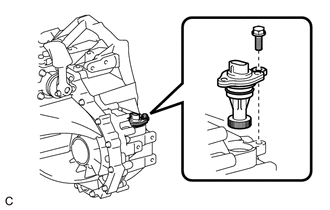

Remove the bolt and speedometer sensor with the speedometer driven gear sub-assembly from the manual transaxle assembly.

2.073,1.469 1.854,1.469 1.854,1.469 1.844,0.99 false 1.531,2.115 1.531,1.927 1.531,1.927 1.292,1.927 false 0.667,2.229 0.625,1.948 0.625,1.948 0.406,1.948 false 2.458,3.021 2.604,3.021 2.604,3.021 2.708,2.729 false 1.073,2.719 1.479,2.719 false 1.125,1.854 1.438,2.052 0.313,0.198 10 false *1 2.135,1.396 2.448,1.594 0.313,0.198 10 false *1 2.26,2.948 2.573,3.146 0.313,0.198 10 false *2 0.885,2.635 1.198,2.833 0.313,0.198 10 false *a 0.25,1.875 0.563,2.073 0.313,0.198 10 false *3

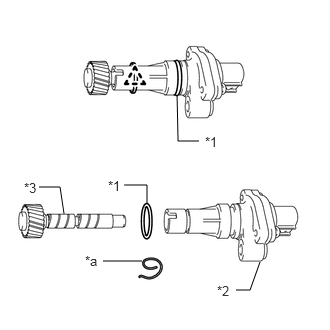

*1	O-ring
*2	Speedometer Sensor
*3	Speedometer Driven Gear Sub-assembly
*4	Clip

Remove the clip and speedometer driven gear sub-assembly from the speedometer sensor.

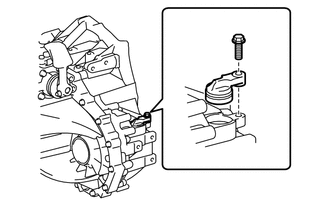

Remove the bolt and speedometer driven hole cover sub-assembly from the manual transaxle assembly.
