Remove the clip and disconnect the transmission control select cable from the floor shift lever assembly.

Push the 2 claws together at the top of the lock piece. While holding the 2 claws together, push the 2 lugs on the bottom of the lock piece toward each other and upward to push out the lock piece.

0.323,1.198 2.99,2.625 2.667,1.427 1.552,0.656 1.552,0.406 false 5.281,1.125 5.281,0.875 false 1.469,0.219 1.781,0.375 0.313,0.156 10 false *d 0.406,1.26 0.719,1.417 0.313,0.156 10 false *a 5.208,1.896 5.521,2.052 0.313,0.156 10 false *c 5.208,0.708 5.521,0.865 0.313,0.156 10 false *d 1.104,0.354 1.417,0.51 0.313,0.156 10 false *b 1.938,0.333 2.25,0.49 0.313,0.156 10 false *b 1.51,1.229 1.823,1.385 0.313,0.156 10 false *b 1.531,2.344 1.844,2.5 0.313,0.156 10 false *b

*a	Bottom View	*b	Push
*c	Push out	*d	Lock Piece

0.313,1.313 0.427,1.313 0.427,1.313 0.438,1.021 true 1.604,1.615 1.604,1.052 true 1.375,1.281 1.375,0.719 true 0.115,1.208 0.427,1.406 0.313,0.198 10 false *b 1.521,1.646 1.833,1.844 0.313,0.198 10 false *a 1.292,1.323 1.542,1.583 0.25,0.26 10 true *c

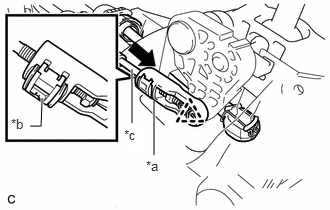

*a	Transmission Control Select Cable
*b	Lock Piece
*c	Cable Rod

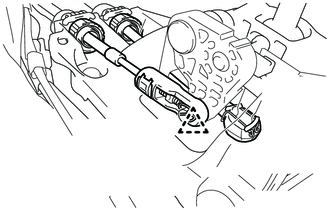

Connect the transmission control select cable to the floor shift lever assembly with the clip.

NOTICE:

Make sure that the lock piece is protruding from the adjuster case.
