CLUTCH  CLUTCH PEDAL  REMOVAL


PROCEDURE

Hide 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 2.DISCONNECT CONNECTORS (for 2ZR-FE)

Click hereDrivetrain>CLUTCH>CLUTCH PEDAL SWITCH>REMOVAL

Hide 31453A 3.REMOVE CLUTCH MASTER CYLINDER PUSH ROD CLEVIS WITH HOLE PIN

a.

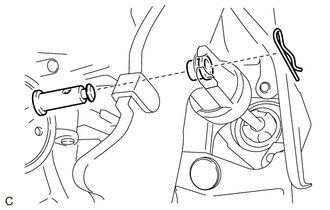

C298679

Remove the clip from the clutch master cylinder push rod clevis with hole pin.


b.

Remove the clutch master cylinder push rod clevis with hole pin and disconnect the clutch master cylinder push rod clevis from the clutch pedal sub-assembly.


Hide 55107A 4.REMOVE CLUTCH PEDAL SUPPORT SUB-ASSEMBLY

a.
C294744

Remove the 2 nuts, 2 bolts and clutch pedal support sub-assembly from the vehicle body.


Hide 84520 5.REMOVE NO. 2 CLUTCH PEDAL SWITCH ASSEMBLY (for 2ZR-FE)

Click hereDrivetrain>CLUTCH>CLUTCH PEDAL SWITCH>REMOVAL

Hide 31301F 6.REMOVE CLUTCH PEDAL STOPPER BOLT

a.
C294745

Remove the clutch pedal stopper bolt from the clutch pedal support sub-assembly.


Hide 31301A 7.REMOVE CLUTCH PEDAL SPRING (for 2NZ-FE)

a.
C153765

Remove the clutch pedal spring from the clutch pedal sub-assembly and clutch pedal support sub-assembly.


Hide 31301R 8.REMOVE TURN OVER SPRING SEAT COMPRESSION SPRING (for 2ZR-FE)

a.

Secure the clutch pedal sub-assembly in a vise between aluminum plates.

NOTICE:

Be careful not to damage the clutch pedal sub-assembly in the vise.



b.

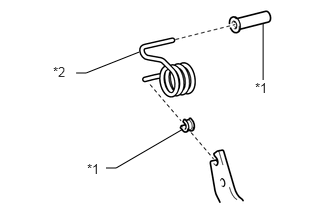

C175650C02
0.792,0.76 0.896,0.76 0.896,0.76 1.448,0.542 false 2.74,0.833 2.74,0.24 false 1.104,1.75 1.208,1.75 1.208,1.75 1.906,1.344 false 2.656,0.833 2.844,1 0.188,0.167 10 false *1 0.906,1.677 1.094,1.844 0.188,0.167 10 false *1 0.552,0.667 0.74,0.833 0.188,0.167 10 false *2
*1 Turn Over Bushing
*2 Turn Over Spring Seat Compression Spring


While the clutch pedal sub-assembly is fully depressed, remove the turn over spring seat compression spring from the clutch pedal sub-assembly and clutch pedal support sub-assembly.


c.

Remove the 2 turn over bushings from the clutch pedal sub-assembly and clutch pedal support sub-assembly.


Hide 31301 9.REMOVE CLUTCH PEDAL SUB-ASSEMBLY

a.
C294746

Remove the bolt and nut.


b.

Remove the clutch pedal sub-assembly from the clutch pedal support sub-assembly.


Hide 31321 10.REMOVE CLUTCH PEDAL PAD

a.
C224781

Remove the clutch pedal pad from the clutch pedal sub-assembly.


Hide 31301C 11.REMOVE CLUTCH PEDAL BUSHING

a.
C298680

Remove the 2 clutch pedal bushings from the clutch pedal sub-assembly.


Hide 31301B 12.REMOVE NO. 1 CLUTCH PEDAL CUSHION

a.

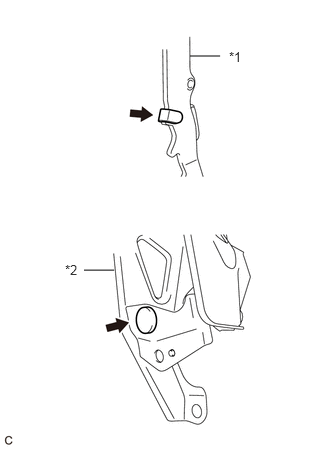

C298681C01
1.979,0.583 2.292,0.583 false 0.875,2.813 1.188,2.813 false 2.385,0.51 2.698,0.708 0.313,0.198 10 false *1 0.677,2.729 0.99,2.927 0.313,0.198 10 false *2
*1 Clutch Pedal Sub-assembly
*2 Clutch Pedal Support Sub-assembly


Remove the 2 No. 1 clutch pedal cushions from the clutch pedal sub-assembly and clutch pedal support sub-assembly.


Hide 31453B 13.REMOVE CLUTCH MASTER CYLINDER PUSH ROD CLEVIS BUSHING

a.
C298682

Using an 8 mm hexagon socket wrench and a hammer, remove the clutch master cylinder push rod clevis bushing from the clutch pedal sub-assembly.
