CLUTCH  CLUTCH PEDAL SWITCH  REMOVAL


PROCEDURE

Hide 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 2.DISCONNECT CONNECTORS

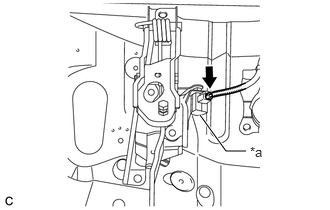

a.
C304652C01
2.083,1.198 2.354,1.573 2.354,1.573 2.563,1.573 true 2.604,1.5 2.917,1.698 0.313,0.198 10 false *a
*a No. 2 Clutch Pedal Switch Assembly


Disconnect the No. 2 clutch pedal switch assembly connector.


Hide 84520 3.REMOVE NO. 2 CLUTCH PEDAL SWITCH ASSEMBLY (for 2ZR-FE)

a.
C292947

Remove the nut and No. 2 clutch pedal switch assembly from the clutch pedal support sub-assembly.

NOTICE:

To prevent damage to the No. 2 clutch pedal switch assembly, make sure not to rotate it during removal.
