2NZ-FE FUEL  FUEL PRESSURE REGULATOR  REMOVAL


PROCEDURE

Hide 77020A 1.REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click hereEngine / Hybrid System>2NZ-FE FUEL>FUEL PUMP>REMOVAL

Hide 83320 2.REMOVE FUEL SENDER GAUGE ASSEMBLY

Click hereEngine / Hybrid System>2NZ-FE FUEL>FUEL SENDER GAUGE ASSEMBLY>REMOVAL

Hide 23220A 3.REMOVE FUEL PUMP WITH FILTER ASSEMBLY

Click hereEngine / Hybrid System>2NZ-FE FUEL>FUEL PUMP>DISASSEMBLY

Hide 23280J 4.REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

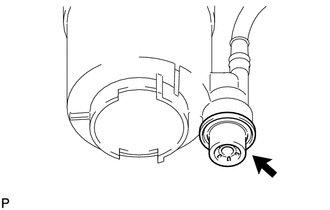

a.
A126640

Using a screwdriver with its tip wrapped with protective tape, remove the fuel pressure regulator assembly from the fuel filter.

NOTICE:

Slowly pull out the fuel pressure regulator assembly because the O-rings are firmly installed between the fuel pressure regulator assembly and fuel filter.

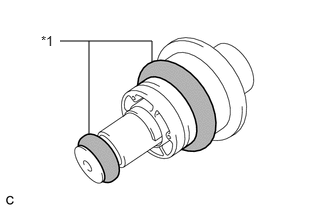

b.
A148186C12
1.583,0.646 1.583,0.427 1.583,0.427 0.625,0.427 false 0.927,1.396 0.927,0.427 false 0.427,0.344 0.604,0.479 0.177,0.135 10 *1
*1 O-ring


Remove the 2 O-rings from the fuel pressure regulator assembly.
