2NZ-FE FUEL  FUEL SENDER GAUGE ASSEMBLY  REMOVAL


PROCEDURE

Hide 77020A 1.REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click hereEngine / Hybrid System>2NZ-FE FUEL>FUEL PUMP>REMOVAL

Hide 83320 2.REMOVE FUEL SENDER GAUGE ASSEMBLY

a.

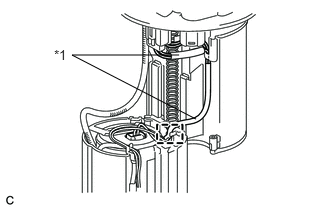

A183945C01
2.042,1.24 0.75,0.573 0.75,0.573 1.865,0.573 false 0.563,0.49 0.875,0.646 0.313,0.156 10 false *1
*1 Harness Protector


Disengage the harness clamp, then remove the 2 harness protectors from the wire harness.

NOTICE:

Do not damage the wire harness.



b.

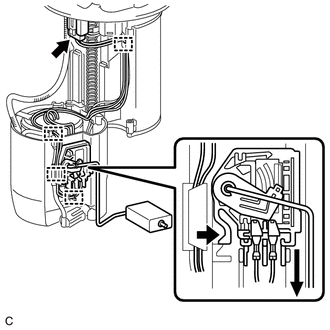

A310296

Disconnect the fuel sender gauge assembly connector.


c.

Disengage the wire harness from the 4 harness clamps.

NOTICE:

Do not damage the wire harness.



d.

Release the lock as shown in the illustration and slide the fuel sender gauge assembly to remove it.

NOTICE:

Make sure that the fuel sender gauge assembly arm does not bend.
