2ZR-FE ENGINE CONTROL SFI SYSTEM P0365 Camshaft Position Sensor "B" Circuit (Bank 1) P0367 Camshaft Position Sensor "B" Circuit Low Input (Bank 1) P0368 Camshaft Position Sensor "B" Circuit High Input (Bank 1)
DESCRIPTION
The camshaft position sensor (for exhaust camshaft) (EV1 signal) consists of a magnet and MRE (Magneto Resistance Element).
The exhaust camshaft has a timing rotor for the camshaft position sensor. When the camshaft rotates, changes occur in the air gaps between the timing rotor and MRE, which affects the magnetic field. As a result, the resistance of the MRE material fluctuates. The camshaft position sensor converts the camshaft rotation data to pulse signals, uses the pulse signals to determine the camshaft angle, and sends it to the ECM. Then the ECM uses this data to control fuel injection duration, fuel injection timing and Variable Valve Timing (VVT) system.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory |
|---|---|---|---|---|---|
| P0365 | Camshaft Position Sensor "B" Circuit (Bank 1) | No camshaft position sensor (for exhaust camshaft) signal for 5 seconds at an engine speed of 600 rpm or higher (1 trip detection logic). | ·
Open or short in camshaft position sensor (for exhaust camshaft) circuit ·
Camshaft position sensor (for exhaust camshaft) ·
Exhaust camshaft ·
Valve timing ·
ECM |
Comes on | DTC stored |
| P0367 | Camshaft Position Sensor "B" Circuit Low Input (Bank 1) | The output voltage of the camshaft position sensor (for exhaust camshaft) is less than 0.3 V for 4 seconds (1 trip detection logic). | ·
Open or short in camshaft position sensor (for exhaust camshaft) circuit ·
Camshaft position sensor (for exhaust camshaft) ·
ECM |
Comes on | DTC stored |
| P0368 | Camshaft Position Sensor "B" Circuit High Input (Bank 1) | The output voltage of the camshaft position sensor (for exhaust camshaft) is higher than 4.7 V for 4 seconds (1 trip detection logic). | ·
Open or short in camshaft position sensor (for exhaust camshaft) circuit ·
Camshaft position sensor (for exhaust camshaft) ·
ECM |
Comes on | DTC stored |
- HINT:
-
Reference: Inspection using an oscilloscope.
-
Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>SFI SYSTEM>P0340
MONITOR DESCRIPTION
If no pulse signal is transmitted by the camshaft position sensor (for exhaust camshaft) despite the camshaft rotating, the ECM interprets this as a malfunction of the sensor.
Also, when the sensor output voltage remains at less than 0.3 V, or higher than 4.7 V for 4 seconds, the ECM stores a DTC.
MONITOR STRATEGY
| Required Sensors/Components (Main) | Camshaft position sensor (for exhaust camshaft) |
| Required Sensors/Components (Related) | Crankshaft position sensor |
| Frequency of Operation | Continuous |
CONFIRMATION DRIVING PATTERN
Connect the GTS to the DLC3.
Turn the ignition switch to ON and turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON and turn the GTS on.
Start the engine.
Idle the engine for 10 seconds or more.
Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
Input the DTC: P0365, P0367 or P0368.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
| N/A | ·
Unable to perform DTC judgment ·
Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit |
- HINT:
- ·
If the judgment result shows NORMAL, the system is normal.
·If the judgment result shows ABNORMAL, the system has a malfunction.
·If the judgment result shows INCOMPLETE or N/A, perform the Confirmation Driving Pattern and check the DTC judgment result again.

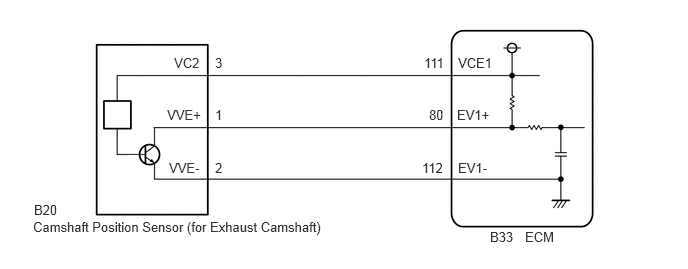

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- HINT:
- ·
If no problem is found through this diagnostic troubleshooting procedure, there may be a mechanical problem with the engine.
·Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE

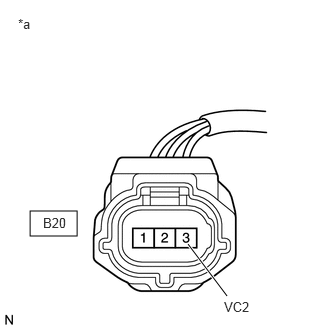

| *a | Front view of wire harness connector
(to Camshaft Position Sensor (for Exhaust Camshaft)) |
Disconnect the camshaft position sensor (for exhaust camshaft) connector.
Turn the ignition switch to ON.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition B20-3 (VC2) - Body ground Ignition switch ON 4.5 to 5.5 V
- Result:
Proceed to OK NG
OK
NG
Disconnect the camshaft position sensor (for exhaust camshaft) connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition B20-1 (VVE+) - B33-80 (EV1+) Always Below 1 Ω B20-2 (VVE-) - B33-112 (EV1-) Always Below 1 Ω B20-1 (VVE+) or B33-80 (EV1+) - Body ground Always 10 kΩ or higher B20-2 (VVE-) or B33-112 (EV1-) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
| *a | Clearance |
Check the camshaft position sensor (for exhaust camshaft) installation condition.
- OK:
Camshaft position sensor is installed correctly.
- Result:
Proceed to OK NG
OK
NG
Inspect the timing rotor of the exhaust camshaft.
- OK:
Camshaft timing rotor does not have any cracks or deformation.
- HINT:
-
Perform "Inspection After Repair" after replacing the exhaust camshaft.
-
Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>SFI SYSTEM>INITIALIZATION
- Result:
Proceed to OK NG
OK
NG
Replace the camshaft position sensor (for exhaust camshaft).
Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>CAMSHAFT POSITION SENSOR>REMOVAL
- Result:
Proceed to NEXT
NEXT
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs.
- Powertrain > Engine and ECT > Clear DTCs
- 50002 234
Turn the ignition switch off and wait for at least 30 seconds.
Start the engine.
Turn the GTS on.
Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
Read the DTCs.
- Powertrain > Engine and ECT > Trouble Codes
- 50001 234
- Result:
Result Proceed to DTC P0365, P0367 or P0368 is output A DTCs are not output B
A
B
Check for mechanical malfunctions that affect the valve timing, such as a jumped tooth or stretching of the timing chain.
- Result:
Proceed to OK NG
OK
NG
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs.
- Powertrain > Engine and ECT > Clear DTCs
- 50002 234
Turn the ignition switch off and wait for at least 30 seconds.
Start the engine.
Turn the GTS on.
Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
Read the DTCs.
- Powertrain > Engine and ECT > Trouble Codes
- 50001 234
- Result:
Result Proceed to DTCs are not output A DTC P0365, P0367 or P0368 is output B
- HINT:
-
If the engine does not start, replace the ECM.
A
B
Disconnect the camshaft position sensor (for exhaust camshaft) connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition B20-3 (VC2) - B33-111 (VCE1) Always Below 1 Ω B20-3 (VC2) or B33-111 (VCE1) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
