2ZR-FE ENGINE CONTROL SFI SYSTEM P0016 Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A) P0017 Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor B)
DESCRIPTION
In the VVT (Variable Valve Timing) system, the appropriate intake and exhaust valve open and close timing is controlled by the ECM. The ECM performs intake and exhaust valve control by performing the following: 1) controlling the camshaft and camshaft timing oil control valve assembly, and operating the camshaft timing gear; and 2) changing the relative positions of the camshaft and crankshaft.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory |
|---|---|---|---|---|---|
| P0016 | Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A) | Deviation in the crankshaft position sensor signal and camshaft position sensor (for intake camshaft) signal (2 trip detection logic). | ·
Valve timing ·
Camshaft timing oil control valve assembly (for intake camshaft) ·
Camshaft timing gear assembly ·
Oil control valve filter ·
ECM |
Does not come on | DTC stored |
| P0017 | Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor B) | Deviation in the crankshaft position sensor signal and camshaft position sensor (for exhaust camshaft) signal (2 trip detection logic). | ·
Valve timing ·
Camshaft timing oil control valve assembly (for exhaust camshaft) ·
Camshaft timing exhaust gear assembly ·
Oil control valve filter ·
ECM |
Does not come on | DTC stored |
MONITOR DESCRIPTION
To monitor the correlation of the intake camshaft position and crankshaft position, the ECM checks the VVT learned value while the engine is idling. The VVT learned value is calibrated based on the camshaft position and crankshaft position. The intake valve timing is set to the most retarded angle while the engine is idling. If the VVT learned value is out of the specified range in consecutive driving cycles, the ECM stores DTC P0016.
To monitor the correlation of the exhaust camshaft position and crankshaft position, the ECM checks the VVT learned value while the engine is idling. The VVT learned value is calibrated based on the camshaft position and crankshaft position. The exhaust valve timing is set to the most advanced angle while the engine is idling. If the VVT learned value is out of the specified range in consecutive driving cycles, the ECM stores DTC P0017.
MONITOR STRATEGY
| Required Sensors/Components (Main) | Camshaft timing gear assembly
Camshaft timing exhaust gear assembly |
| Required Sensors/Components (Related) | Camshaft position sensor
Crankshaft position sensor |
| Frequency of Operation | Continuous |
TYPICAL ENABLING CONDITIONS
| Engine speed | 500 to 1000 rpm |

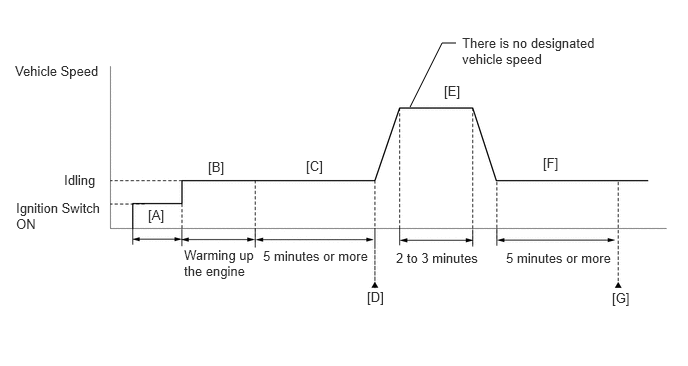

CONFIRMATION DRIVING PATTERN
Connect the GTS to the DLC3.
Turn the ignition switch to ON and turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON and turn the GTS on [A].
Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
Idle the engine for 5 minutes or more [C].
Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [D].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
Input the DTC: P0016 or P0017.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
| N/A | ·
Unable to perform DTC judgment ·
Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit |
- HINT:
- ·
If the judgment result shows NORMAL, the system is normal.
·If the judgment result shows ABNORMAL, the system has a malfunction.
·If the judgment result shows INCOMPLETE or N/A, perform steps [E] through [G].
Drive the vehicle for 2 to 3 minutes [E].
- CAUTION:
-
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
Idle the engine for 5 minutes or more [F].
Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [G].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Check the DTC judgment result.
- HINT:
- ·
If the judgment result shows NORMAL, the system is normal.
·If the judgment result shows ABNORMAL, the system has a malfunction.
CAUTION / NOTICE / HINT
- HINT:
- ·
The monitor for this DTC detects when the timing chain is shifted by 2 to 3 teeth or more.
·Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
Read the DTCs.
- Powertrain > Engine and ECT > Trouble Codes
- 50001 234
- Result:
Result Proceed to DTC P0016 or P0017 is output A DTC P0016 or P0017 and other DTCs are output B
- HINT:
-
If any DTCs other than P0016 or P0017 are output, troubleshoot those DTCs first.
A
B
- HINT:
-
If the VVT system can be operated through the Active Test, it can be assumed that the VVT system is operating normally.
Connect the GTS to the DLC3.
Start the engine.
Turn the A/C switch on.
Turn the GTS on.
Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the VVT Linear (Bank 1) or Control the VVT Exhaust Linear (Bank 1) / All Data / VVT Change Angle #1 or VVT Ex Chg Angle #1.
- Powertrain > Engine and ECT > Active Test
-
Active Test Display Control the VVT Linear (Bank1) -
Data List Display VVT Change Angle #1 - 50004 234 32 305
- Powertrain > Engine and ECT > Active Test
-
Active Test Display Control the VVT Exhaust Linear (Bank1) -
Data List Display VVT Ex Chg Angle #1 - 50004 234 87 311
Perform the Active Test. Check that the displacement angle varies.
- OK:
Displacement angle varies.
- Result:
Proceed to OK NG
OK
NG
Check for mechanical malfunctions that affect the valve timing, such as a jumped tooth or stretching of the timing chain.
- Result:
Proceed to OK NG
OK
NG
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs.
- Powertrain > Engine and ECT > Clear DTCs
- 50002 234
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON.
Turn the GTS on.
Start the engine and warm it up.
Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.
Read the pending DTCs.
- Powertrain > Engine and ECT > Trouble Codes
- 50001 234
- Result:
Result Proceed to DTCs are not output A DTC P0016 or P0017 is output B
A
B
Inspect the camshaft timing oil control valve assembly (for intake or exhaust camshaft).
Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>CAMSHAFT OIL CONTROL VALVE>INSPECTION
- Result:
Proceed to OK NG
OK
NG
OK
NG
Replace the camshaft timing gear assembly or camshaft timing exhaust gear assembly.
Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>CAMSHAFT>REMOVAL
- HINT:
-
Perform "Inspection After Repair" after replacing the camshaft timing gear assembly or camshaft timing exhaust gear assembly.
-
Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>SFI SYSTEM>INITIALIZATION
- Result:
Proceed to NEXT
NEXT
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs.
- Powertrain > Engine and ECT > Clear DTCs
- 50002 234
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON.
Turn the GTS on.
Start the engine and warm it up.
Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.
Read the pending DTCs.
- Powertrain > Engine and ECT > Trouble Codes
- 50001 234
- Result:
Result Proceed to DTCs are not output A DTC P0016 or P0017 is output B
A
B
