2ZR-FE ENGINE CONTROL  CAMSHAFT OIL CONTROL VALVE  REMOVAL


PROCEDURE

Hide 11212 1.REMOVE NO. 2 CYLINDER HEAD COVER

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 11101J 2.REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side)

a.
A169007

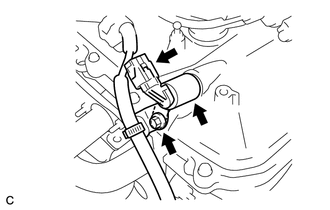

Disconnect the camshaft timing oil control valve assembly connector.


b.

Remove the bolt, wire harness bracket and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.

NOTICE:
·

Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly).

·

If the camshaft timing oil control valve assembly has been struck or dropped, replace it.




c.
A205980C03
1.583,0.906 1.031,0.406 1.031,0.406 0.906,0.406 false 0.729,0.344 1.042,0.5 0.313,0.156 10 *1
*1 O-ring


Remove the O-ring from the camshaft timing oil control valve assembly.


Hide 11101J 3.REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side)

a.
A155412

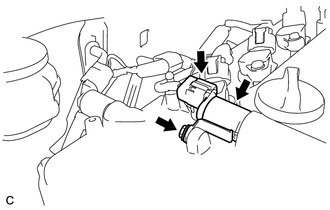

Disconnect the camshaft timing oil control valve assembly connector.


b.

Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.

NOTICE:
·

Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly).

·

If the camshaft timing oil control valve assembly has been struck or dropped, replace it.




c.
A294057C01
1.573,0.885 1.281,0.479 1.281,0.479 1.104,0.479 false 0.958,0.406 1.271,0.563 0.313,0.156 10 *1
*1 O-ring


Remove the O-ring from the camshaft timing oil control valve assembly.
