BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  ANTI-LOCK BRAKE SYSTEM  TS and CG Terminal Circuit


DESCRIPTION

Connecting terminals TS and CG of the DLC3 causes the ECU to display Test Mode DTCs by blinking the ABS warning light.

In Test Mode (signal check), a malfunction in a speed sensor that cannot be detected when the vehicle is stopped can be detected while driving.

Sensor check mode can be entered by connecting terminals TS and CG of the DLC3 and turning the ignition switch from off to ON.

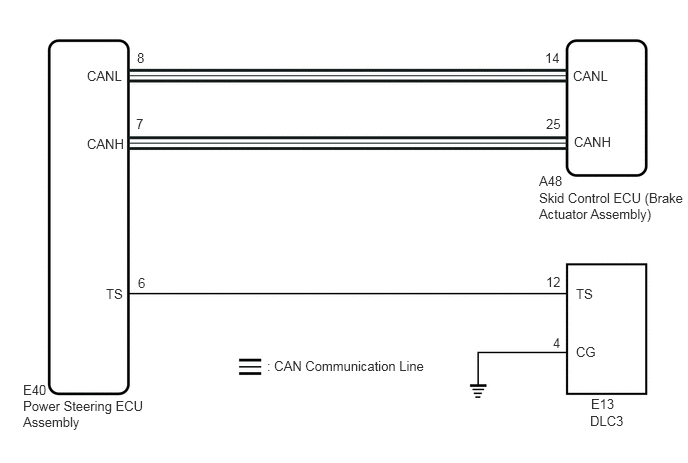

WIRING DIAGRAM

C270527E34
0.906,0.708 1.521,0.906 0.615,0.198 10 false CANL 5.969,0.708 6.583,0.906 0.615,0.198 10 false CANL 0.906,1.417 1.521,1.615 0.615,0.198 10 false CANH 5.979,1.396 6.594,1.594 0.615,0.198 10 false CANH 5.615,1.979 7.135,2.365 1.521,0.385 10 false Skid Control ECU (Brake Actuator Assembly) 6.146,4.302 6.76,4.5 0.615,0.198 10 false DLC3 6.156,4.125 6.615,4.323 0.458,0.198 10 false E13 5.615,1.802 6.073,2 0.458,0.198 10 false A48 1.427,0.521 1.74,0.719 0.313,0.198 10 false 8 1.417,1.208 1.729,1.406 0.313,0.198 10 false 7 1.438,2.865 1.75,3.063 0.313,0.198 10 false 6 1.104,2.979 1.417,3.177 0.313,0.198 10 false TS 6,2.979 6.313,3.177 0.313,0.198 10 false TS 6,3.583 6.313,3.781 0.313,0.198 10 false CG 5.688,2.854 6,3.052 0.313,0.198 10 false 12 5.76,3.49 5.917,3.688 0.156,0.198 10 false 4 0.24,3.979 0.698,4.177 0.458,0.198 10 false E40 0.24,4.146 1.552,4.552 1.313,0.406 10 false Power Steering ECU Assembly 2.781,3.729 4.563,3.927 1.781,0.198 10 false : CAN Communication Line 5.677,0.521 5.99,0.719 0.313,0.198 10 false 14 5.688,1.208 6,1.406 0.313,0.198 10 false 25

PROCEDURE

1.CHECK CAN COMMUNICATION SYSTEM
a.

Check if CAN communication system DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>DIAGNOSIS SYSTEM


Result:
Result Proceed to
DTCs are not output. A
DTCs are output. B



A

2.INSPECT DLC3

B

INSPECT CAN COMMUNICATION SYSTEM

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING


2.INSPECT DLC3
a.
C207407C81
0.25,0.979 0.698,1.271 0.448,0.292 1.625,2.375 1.917,1 false 1.594,1.885 1.135,1.01 false 0.333,0.302 0.521,0.469 0.188,0.167 10 false *a 1.865,0.813 2.104,0.979 0.24,0.167 10 false TS 0.365,1.042 0.781,1.333 0.417,0.292 10 false E13 1.021,0.813 1.26,0.979 0.24,0.167 10 false CG

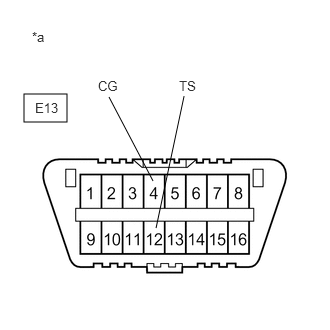

*a Front view of DLC3


Turn the ignition switch to ON.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
E13-12 (TS) - E13-4 (CG) Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

3.CHECK POWER STEERING ECU ASSEMBLY (TS of DLC3 INPUT)

NG

4.CHECK HARNESS AND CONNECTOR (TS of DLC3 - POWER STEERING ECU ASSEMBLY)
3.CHECK POWER STEERING ECU ASSEMBLY (TS of DLC3 INPUT)
a.
C207407C81
0.25,0.979 0.698,1.271 0.448,0.292 1.625,2.375 1.917,1 false 1.594,1.885 1.135,1.01 false 0.333,0.302 0.521,0.469 0.188,0.167 10 false *a 1.865,0.813 2.104,0.979 0.24,0.167 10 false TS 0.365,1.042 0.781,1.333 0.417,0.292 10 false E13 1.021,0.813 1.26,0.979 0.24,0.167 10 false CG
*a Front view of DLC3


Turn the ignition switch off.


b.

Using SST, connect terminals TS and CG of the DLC3.


SST
09843-18040

c.

Check that the EPS warning light is blinking.

OK:

The EPS warning light is blinking.


HINT:

If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing parts.

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ANTI-LOCK BRAKE SYSTEM>PROBLEM SYMPTOMS TABLE



Result:
Proceed to
OK
NG



OK

REPLACE BRAKE ACTUATOR ASSEMBLY

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR>REMOVAL


NG

REPLACE POWER STEERING ECU ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


4.CHECK HARNESS AND CONNECTOR (TS of DLC3 - POWER STEERING ECU ASSEMBLY)
a.

Turn the ignition switch off.


b.

Disconnect the E40 power steering ECU assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E13-12 (TS) - E40-6 (TS) Always Below 1 Ω
E13-12 (TS) or E40-6 (TS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)
a.
C207407C80
0.25,0.979 0.698,1.271 0.448,0.292 1.594,1.885 2.438,0.958 false 0.333,0.302 0.521,0.469 0.188,0.167 10 false *a 0.354,1.042 0.698,1.25 0.344,0.208 10 false E13 2.438,0.76 2.677,0.927 0.24,0.167 10 false CG

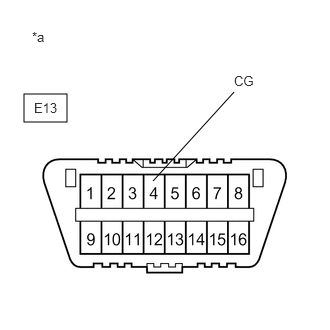

*a Front view of DLC3


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E13-4 (CG) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

6.CHECK POWER STEERING ECU ASSEMBLY (TS of DLC3 INPUT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK POWER STEERING ECU ASSEMBLY (TS of DLC3 INPUT)
a.
C207407C81
0.25,0.979 0.698,1.271 0.448,0.292 1.625,2.375 1.917,1 false 1.594,1.885 1.135,1.01 false 0.333,0.302 0.521,0.469 0.188,0.167 10 false *a 1.865,0.813 2.104,0.979 0.24,0.167 10 false TS 0.365,1.042 0.781,1.333 0.417,0.292 10 false E13 1.021,0.813 1.26,0.979 0.24,0.167 10 false CG
*a Front view of DLC3


Reconnect the E40 power steering ECU assembly connector.


b.

Using SST, connect terminals TS and CG of the DLC3.


SST
09843-18040

c.

Check that the EPS warning light is blinking.

OK:

The EPS warning light is blinking.


HINT:

If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing parts.

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ANTI-LOCK BRAKE SYSTEM>PROBLEM SYMPTOMS TABLE



Result:
Proceed to
OK
NG



OK

REPLACE BRAKE ACTUATOR ASSEMBLY

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR>REMOVAL


NG

REPLACE POWER STEERING ECU ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL
