POWER ASSIST SYSTEMS  POWER STEERING ECU  REMOVAL


PROCEDURE

Hide 1.REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 89650 2.REMOVE POWER STEERING ECU ASSEMBLY

a.

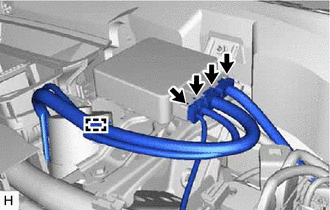

C269250

Disconnect the 4 connectors from the power steering ECU assembly.


b.

Disengage the clamp from the power steering ECU assembly.


c.

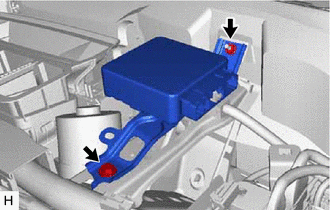

C269251

Remove the bolt, nut and power steering ECU assembly.
