2NZ-FE ENGINE CONTROL  SFI SYSTEM  P0010  Camshaft Position "A" Actuator Circuit (Bank 1)


DESCRIPTION

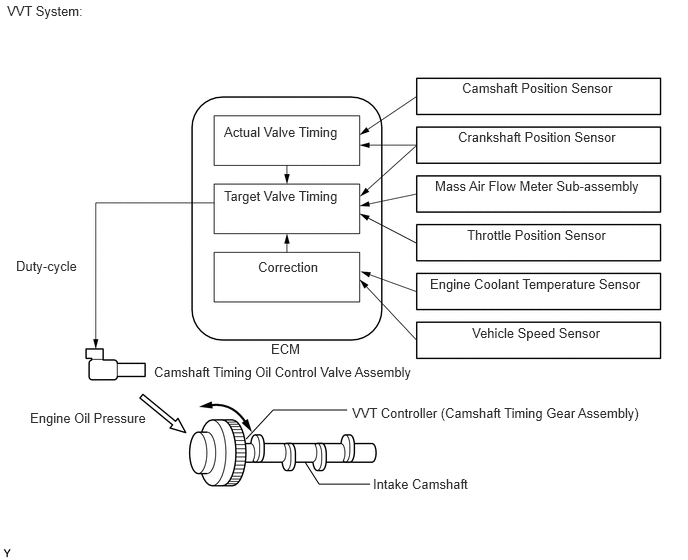

The Variable Valve Timing (VVT) system adjusts the intake valve timing to improve driveability. The engine oil pressure turns the VVT controller to adjust the valve timing.

The camshaft timing oil control valve assembly is a solenoid valve and switches the engine oil line. The valve moves when the ECM applies 12 V to the solenoid. The ECM changes the energizing time to the solenoid (duty-cycle) in accordance with the camshaft position, crankshaft position, throttle position, etc.

A209140E65
2.563,4.573 2.844,4.271 2.844,4.271 3.615,4.271 false 3.177,4.813 3.323,5.042 3.323,5.042 3.854,5.042 false 4.813,0.833 6.448,1.031 1.635,0.198 10 false Camshaft Position Sensor 4.771,1.344 6.5,1.5 1.729,0.156 10 false Crankshaft Position Sensor 0.073,0.031 0.948,0.229 0.875,0.198 10 false VVT System: 2.333,1.958 3.615,2.135 1.281,0.177 10 false Target Valve Timing 2.333,1.292 3.615,1.469 1.281,0.177 10 false Actual Valve Timing 2.688,2.698 3.406,2.875 0.719,0.177 10 false Correction 2.823,3.552 3.417,3.729 0.594,0.177 10 false ECM 1.604,3.792 4.531,3.979 2.927,0.188 10 false Camshaft Timing Oil Control Valve Assembly 0.167,2.688 0.865,2.865 0.698,0.177 10 false Duty-cycle 4.531,1.854 6.74,2.073 2.208,0.219 10 false Mass Air Flow Meter Sub-assembly 4.479,2.875 6.781,3.073 2.302,0.198 10 false Engine Coolant Temperature Sensor 4.865,2.365 6.396,2.531 1.531,0.167 10 false Throttle Position Sensor 4.917,3.385 6.354,3.563 1.438,0.177 10 false Vehicle Speed Sensor 0.313,4.271 1.677,4.479 1.365,0.208 10 false Engine Oil Pressure 3.667,4.219 7.063,4.406 3.396,0.188 10 false VVT Controller (Camshaft Timing Gear Assembly) 3.885,4.958 4.99,5.146 1.104,0.188 10 false Intake Camshaft

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory
P0010 Camshaft Position "A" Actuator Circuit (Bank 1) Open or short in camshaft timing oil control valve assembly circuit (1 trip detection logic).
·

Open or short in camshaft timing oil control valve assembly circuit

·

Camshaft timing oil control valve assembly

·

ECM


Comes on DTC stored

MONITOR DESCRIPTION

This DTC is designed to detect an open or short in the camshaft timing oil control valve assembly circuit. If the camshaft timing oil control valve assembly duty-cycle is excessively high or low while the ignition switch is ON or the engine is running, the ECM will illuminate the MIL and store this DTC.

CONFIRMATION DRIVING PATTERN

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for at least 30 seconds.

5.

Turn the ignition switch to ON and turn the GTS on.

6.

Wait 5 seconds or more.

7.

Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

8.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



9.

Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

10.

Input the DTC: P0010.

11.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions


N/A
·

Unable to perform DTC judgment

·

Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE or N/A, perform the Confirmation Driving Pattern and check the DTC judgment result again.

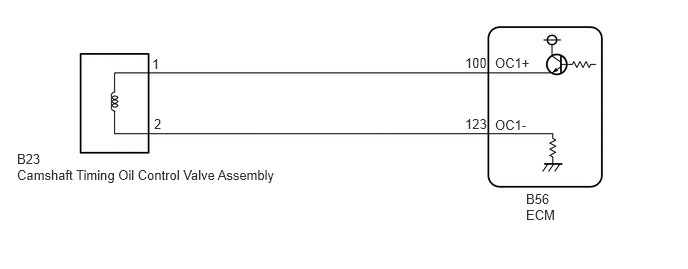

WIRING DIAGRAM

A256087E59
5.479,2.156 5.927,2.385 0.448,0.229 10 false ECM 0.177,1.74 2.917,2.083 2.74,0.344 10 false Camshaft Timing Oil Control Valve Assembly 1.583,0.583 1.698,0.74 0.115,0.156 10 false 1 1.604,1.208 1.719,1.365 0.115,0.156 10 false 2 0.177,1.573 0.781,1.833 0.604,0.26 10 false B23 5.479,1.99 5.833,2.208 0.354,0.219 10 false B56 5.156,1.219 5.625,1.385 0.469,0.167 10 false OC1- 5.156,0.573 5.583,0.75 0.427,0.177 10 false OC1+ 4.844,0.573 5.115,0.781 0.271,0.208 10 false 100 4.844,1.208 5.104,1.417 0.26,0.208 10 false 123

CAUTION / NOTICE / HINT

HINT:

Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.READ OUTPUT DTC (DTC P0010)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTC after recording the freeze frame data and DTC.

Powertrain > Engine and ECT > Clear DTCs
50002 234

e.

Turn the ignition switch off and wait for at least 30 seconds.


f.

Turn the ignition switch to ON and wait 5 seconds.


g.

Turn the GTS on.


h.

Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.


i.

Read the DTCs.

Powertrain > Engine and ECT > Trouble Codes
50001 234

Result:
Result Proceed to
DTC P0010 is output A
DTCs are not output B



A

2.INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

B

CHECK FOR INTERMITTENT PROBLEMS

Click hereEngine / Hybrid System>2NZ-FE ENGINE CONTROL>SFI SYSTEM>CHECK FOR INTERMITTENT PROBLEMS


2.INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
a.

Inspect the camshaft timing oil control valve assembly.

Click hereEngine / Hybrid System>2NZ-FE ENGINE CONTROL>CAMSHAFT OIL CONTROL VALVE>INSPECTION


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY - ECM)

NG

REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

Click hereEngine / Hybrid System>2NZ-FE ENGINE CONTROL>CAMSHAFT OIL CONTROL VALVE>REMOVAL


3.CHECK HARNESS AND CONNECTOR (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY - ECM)
a.

Disconnect the camshaft timing oil control valve assembly connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
B23-1 - B56-100 (OC1+) Always Below 1 Ω
B23-2 - B56-123 (OC1-) Always Below 1 Ω
B23-1 or B56-100 (OC1+) - Body ground Always 10 kΩ or higher
B23-2 or B56-123 (OC1-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>2NZ-FE ENGINE CONTROL>ECM>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
