WIPER / WASHER  WIPER ECU  REMOVAL


PROCEDURE

Hide 55405B 1.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 55403F 2.REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 85940 3.REMOVE WINDSHIELD WIPER RELAY ASSEMBLY

a.

Disconnect the connector.


b.

Remove the bolt.


c.

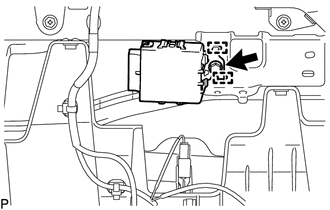

E284245

Disengage the 2 guides and remove the windshield wiper relay assembly.
