THEFT DETERRENT / KEYLESS ENTRY  ELECTRICAL KEY OSCILLATOR(for Luggage Compartment)  REMOVAL


PROCEDURE

Hide 899A0B 2.REMOVE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

a.

Fold the rear seatback assembly RH forward.


b.

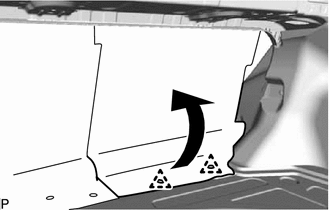

B365151

Remove the 2 clips.


c.

Turn back the separate type rear seatback cover RH as shown in the illustration.


d.

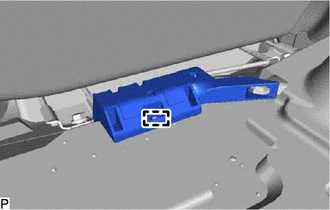

B351853

Disengage the clamp.


e.

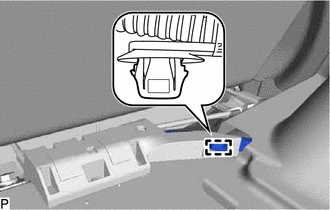

B351854

Disengage the clamp.


f.

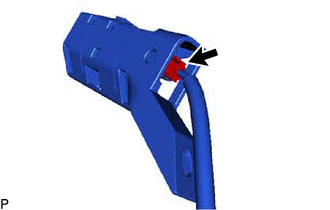

B351855

Disconnect the connector to remove the No. 3 indoor electrical key antenna assembly.

NOTICE:

Be careful when removing the No. 3 indoor electrical key antenna assembly. If the No. 3 indoor electrical key antenna assembly is dropped, replace it with a new one.
