2ZR-FE ENGINE CONTROL  SFI SYSTEM  P2228  Barometric Pressure Circuit Low Input  P2229  Barometric Pressure Circuit High Input


DESCRIPTION

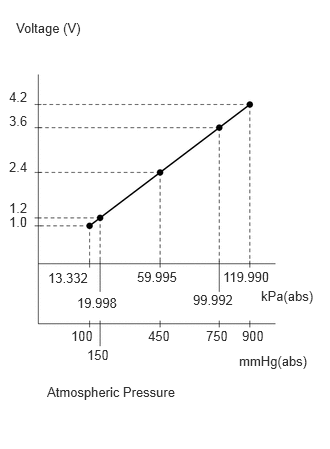

A263608E06
0.094,2.229 0.313,2.396 0.219,0.167 10 false 1.0 0.094,2.083 0.313,2.24 0.219,0.156 10 false 1.2 0.094,1.656 0.323,1.813 0.229,0.156 10 false 2.4 0.094,1.177 0.313,1.333 0.219,0.156 10 false 3.6 0.094,0.927 0.323,1.083 0.229,0.156 10 false 4.2 0.906,3.615 1.167,3.781 0.26,0.167 10 false 150 1.542,3.417 1.802,3.573 0.26,0.156 10 false 450 2.146,3.417 2.396,3.573 0.25,0.156 10 false 750 0.74,3.417 0.99,3.573 0.25,0.156 10 false 100 2.521,3.417 2.823,3.563 0.302,0.146 10 false 900 0.167,0.208 0.969,0.406 0.802,0.198 10 false Voltage (V) 0.49,4 2.25,4.198 1.76,0.198 10 false Atmospheric Pressure 2.49,3.677 3.229,3.875 0.74,0.198 10 false mmHg(abs) 2.719,3 3.302,3.177 0.583,0.177 10 false kPa(abs) 0.802,3.073 1.25,3.229 0.448,0.156 10 false 19.998 0.5,2.813 0.948,2.969 0.448,0.156 10 false 13.332 1.427,2.802 1.875,2.958 0.448,0.156 10 false 59.995 2.01,3.042 2.458,3.198 0.448,0.156 10 false 99.992 2.323,2.802 2.875,2.958 0.552,0.156 10 false 119.990

The vacuum sensor is installed inside the engine compartment and measures the atmospheric pressure using a built-in sensor. The ECM determines the altitude of the vehicle based on the output voltage of the vacuum sensor and corrects the intake air volume measured by the mass air flow meter sub-assembly to perform air fuel ratio control.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory
P2228 Barometric Pressure Circuit Low Input The output voltage from the vacuum sensor is less than 1.4 V for 3 seconds or more (1 trip detection logic).
·

Open or short in vacuum sensor circuit

·

Vacuum sensor

·

ECM


Does not come on DTC stored
P2229 Barometric Pressure Circuit High Input The output voltage from the vacuum sensor is higher than 4.0 V for 3 seconds or more (1 trip detection logic).
·

Open or short in vacuum sensor circuit

·

Vacuum sensor

·

ECM


Does not come on DTC stored

HINT:

When any of these DTCs are output, check the atmospheric pressure using the GTS. Enter the following menus: Powertrain / Engine and ECT / Data List / All Data / Atmospheric Pressure.


MONITOR DESCRIPTION

The ECM monitors the vacuum sensor voltage and uses this value to calculate atmospheric pressure. If the sensor output voltage deviates from the normal operating range, the ECM interprets this as a malfunction in the vacuum sensor and stores a DTC.

Example:

If the sensor output voltage is less than 1.4 V, or higher than 4.0 V for 3 seconds or more, the ECM stores a DTC.

MONITOR STRATEGY

Frequency of Operation Continuous

CONFIRMATION DRIVING PATTERN

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for at least 30 seconds.

5.

Turn the ignition switch to ON and turn the GTS on.

6.

Wait 5 seconds or more.

7.

Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

8.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



9.

Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

10.

Input the DTC: P2228 or P2229.

11.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions


N/A
·

Unable to perform DTC judgment

·

Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE or N/A, perform the Confirmation Driving Pattern and check the DTC judgment result again.

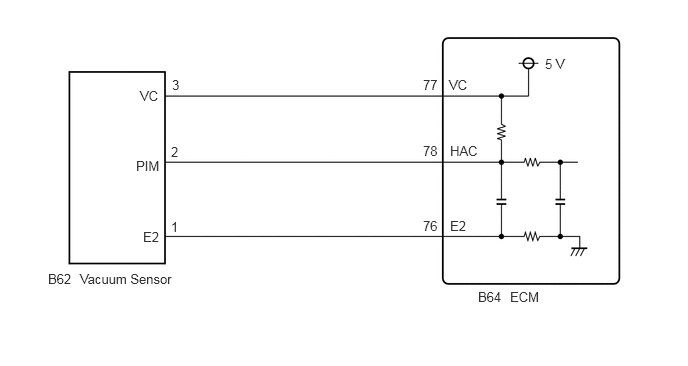

WIRING DIAGRAM

A392752E03
1.458,0.917 1.771,1.115 0.313,0.198 10 false VC 1.417,1.646 2,1.958 0.583,0.313 10 false PIM 1.49,2.385 2.073,2.698 0.583,0.313 10 false E2 0.5,2.823 1.083,3.135 0.583,0.313 10 false B62 0.833,2.823 2.323,3.198 1.49,0.375 10 false Vacuum Sensor 1.792,0.802 2.104,1 0.313,0.198 10 false 3 1.781,1.5 2.094,1.698 0.313,0.198 10 false 2 1.781,2.281 2.094,2.479 0.313,0.198 10 false 1 4.406,0.802 4.719,1 0.313,0.198 10 false 77 4.406,1.49 4.719,1.688 0.313,0.198 10 false 78 4.406,2.271 4.719,2.469 0.313,0.198 10 false 76 4.677,0.802 4.99,1 0.313,0.198 10 false VC 4.688,1.49 5.396,1.844 0.708,0.354 10 false HAC 4.688,2.271 5.396,2.625 0.708,0.354 10 false E2 5.677,0.583 6.385,0.938 0.708,0.354 10 false 5 V 4.979,3.01 5.688,3.365 0.708,0.354 10 false B64 5.313,3.01 6.021,3.365 0.708,0.354 10 false ECM

CAUTION / NOTICE / HINT

HINT:

Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.READ VALUE USING GTS (ATMOSPHERE PRESSURE)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine and ECT / Data List / All Data / Atmosphere Pressure.

Powertrain > Engine and ECT > Data List
Tester Display
Atmosphere Pressure
50003 234 7

e.

Read the Atmosphere Pressure value.

OK:

Same value as the actual atmospheric pressure.


HINT:

Standard atmospheric pressure is 101 kPa(abs) [758 mmHg(abs)]. For every 100 m (328 ft.) increase in altitude, atmospheric pressure drops by approximately 1 kPa (7.5 mmHg). The pressure also varies due to the weather (high atmospheric pressure, low atmospheric pressure).



Result:
Proceed to
OK
NG



OK

NG

2.CHECK TERMINAL VOLTAGE (POWER SOURCE OF VACUUM SENSOR)
2.CHECK TERMINAL VOLTAGE (POWER SOURCE OF VACUUM SENSOR)
A248180C89

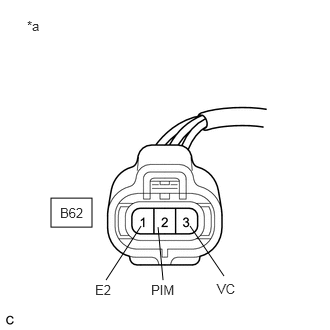

0.531,2.063 0.958,2.365 0.427,0.302 1.469,2.354 1.104,2.917 false 1.646,2.365 1.698,2.917 false 1.979,2.354 2.333,2.875 false 0.281,0.188 0.677,0.406 0.396,0.219 10 false *a 0.625,2.135 1.01,2.313 0.385,0.177 10 false B62 2.26,2.927 2.75,3.198 0.49,0.271 10 false VC 1.573,2.938 2.042,3.135 0.469,0.198 10 false PIM 0.99,2.938 1.26,3.125 0.271,0.188 10 false E2
*a Front view of wire harness connector
(to Vacuum Sensor)


a.

Disconnect the vacuum sensor connector.


b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
B62-3 (VC) - B62-1 (E2) Ignition switch ON 4.75 to 5.25 V
B62-2 (PIM) - B62-1 (E2) Ignition switch ON 3.0 to 5.25 V



Result:
Proceed to
OK
NG



OK

3.REPLACE VACUUM SENSOR

NG

5.CHECK HARNESS AND CONNECTOR (VACUUM SENSOR - ECM)
3.REPLACE VACUUM SENSOR

Result:
Proceed to
NEXT



NEXT

4.CHECK WHETHER DTC OUTPUT RECURS (DTC P2228 OR P2229)
4.CHECK WHETHER DTC OUTPUT RECURS (DTC P2228 OR P2229)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTC.

Powertrain > Engine and ECT > Clear DTCs
50002 234

e.

Turn the ignition switch off and wait for at least 30 seconds.


f.

Turn the ignition switch to ON.


g.

Turn the GTS on.


h.

Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.


i.

Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.


j.

Read the DTCs.

Powertrain > Engine and ECT > Trouble Codes
50001 234

Result:
Result Proceed to
DTCs are not output A
DTC P2228 or P2229 is output B



A

END

B

5.CHECK HARNESS AND CONNECTOR (VACUUM SENSOR - ECM)
a.

Disconnect the vacuum sensor connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
B62-3 (VC) - B64-77 (VC) Always Below 1 Ω
B62-1 (E2) - B64-76 (E2) Always Below 1 Ω
B62-2 (PIM) - B64-78 (HAC) Always Below 1 Ω
B62-3 (VC) or B64-77 (VC) - Body ground and other terminals Always 10 kΩ or higher
B62-2 (PIM) or B64-78 (HAC) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
