2ZR-FE EMISSION CONTROL  VACUUM SENSOR  REMOVAL


PROCEDURE

Hide 11212 1.REMOVE NO. 2 CYLINDER HEAD COVER

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 89421 2.REMOVE VACUUM SENSOR (E.F.I. VACUUM SENSOR ASSEMBLY)

a.

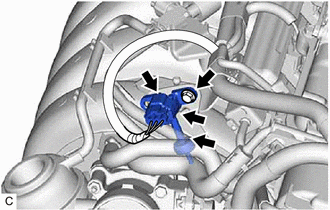

A323385

Disconnect the vacuum sensor (E.F.I. vacuum sensor assembly) connector.


b.

Remove the No. 1 air hose and gas filter from the vacuum sensor (E.F.I. vacuum sensor assembly).


c.

Remove the bolt and vacuum sensor (E.F.I. vacuum sensor assembly) from the vacuum sensor bracket.
