HEATING / AIR CONDITIONING  AIR CONDITIONING PANEL(for Manual Air Conditioning System)  REMOVAL


PROCEDURE

Hide 55405B 1.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 55403F 2.REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 3.REMOVE AIR CONDITIONING PANEL ASSEMBLY

a.

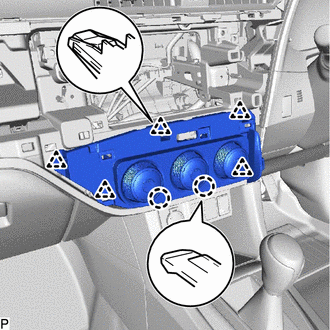

E365098

Disengage the 2 claws and 5 clips.


b.

Disconnect each connector.


c.

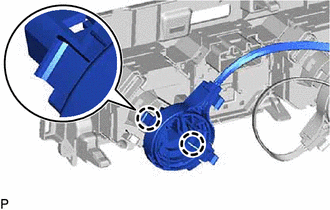

E351824

Disengage the 2 claws and disconnect the air mix damper control cable sub-assembly.


d.

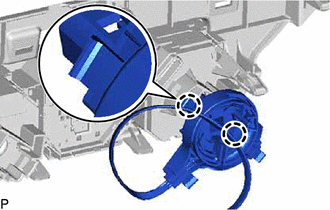

E351825

Disengage the 2 claws and disconnect the No. 2 heater control cable sub-assembly to remove the air conditioning panel assembly.
