HEATING / AIR CONDITIONING  AIR CONDITIONING PANEL(for Automatic Air Conditioning System)  REMOVAL


PROCEDURE

Hide 55405B 1.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 55403F 2.REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 3.REMOVE CENTER INSTRUMENT PANEL SAFETY PAD RETAINER WITH AIR CONDITIONING CONTROL ASSEMBLY

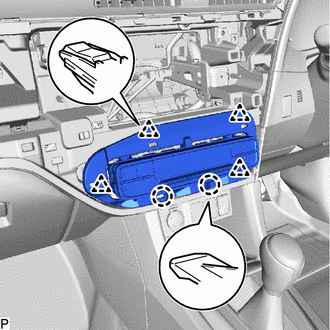

a.
E365097

Disengage the 2 claws and 4 clips.


b.

Disconnect the connector to remove the center instrument panel safety pad retainer with air conditioning control assembly.


Hide 55900 4.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

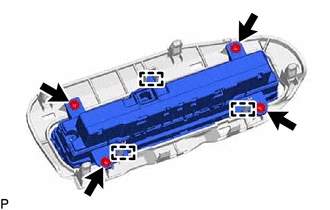

a.
E351820

Remove the 4 screws.


b.

Disengage the 3 guides to remove the air conditioning control assembly.
