2ZR-FE BATTERY / CHARGING  GENERATOR  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION


Hide 27020 4.REMOVE GENERATOR ASSEMBLY

a.

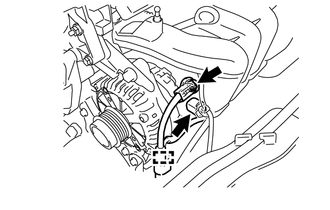

A309052

Remove the terminal cap.


b.

Remove the nut and disconnect the wire harness from terminal B.


c.

Disconnect the generator assembly connector.


d.

Disengage the wire harness clamp from the generator assembly.


e.

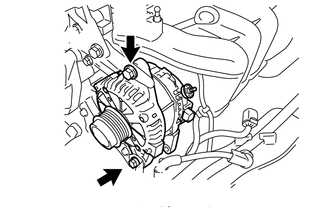

A309053

Remove the 2 bolts and generator assembly.


f.
A258123

Remove the bolt and wire harness clamp bracket from the generator assembly.
