2ZR-FE ENGINE MECHANICAL DRIVE BELT REMOVAL
PROCEDURE
1.REMOVE FRONT WHEEL RH
51441C
2.REMOVE ENGINE UNDER COVER RH
11212
3.REMOVE NO. 2 CYLINDER HEAD COVER
16361A
4.REMOVE V-RIBBED BELT
a.
2.083,1.427 2.25,1.427
2.25,1.427 2.583,1.094
true
2.031,2.75 2.333,1.833
2.333,1.833 2.5,1.833
true
0.833,3.667 1,3.667
1,3.667 1.76,2.906
true
0.656,1.208 1.188,0.615
1.188,0.615 1.479,0.615
true
0.552,0.906 1.01,0.406
1.01,0.406 1.229,0.406
true
1.854,1.333 2.063,1.51
0.208,0.177
10
true
*a
2.542,1.75 2.698,1.948
0.156,0.198
10
false
A
0.698,3.583 0.854,3.781
0.156,0.198
10
false
B
1.26,0.313 1.469,0.49
0.208,0.177
10
true
*c
1.51,0.521 1.719,0.698
0.208,0.177
10
true
*b

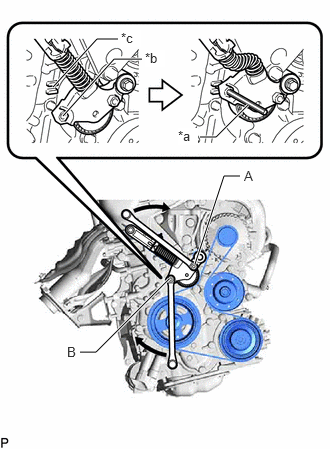

| *a | 5 mm Hexagon Wrench |
| *b | Hole |
| *c | Gap |
Attach a wrench to the hexagonal portion (A) or (B) of the V-ribbed belt tensioner assembly as shown in the illustration.
b.
Rotate the V-ribbed belt tensioner assembly clockwise to align the hole with the gap, and then insert a 5 mm hexagon wrench into the hole and gap to secure the V-ribbed belt tensioner assembly.
c.
Remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
