DOOR LOCK  WIRELESS DOOR LOCK BUZZER  REMOVAL


PROCEDURE

Hide 1.REMOVE FRONT WHEEL RH

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL

Hide 53875A 2.REMOVE FRONT FENDER LINER RH

Click hereVehicle Exterior>WIPER / WASHER>WASHER MOTOR>REMOVAL

Hide 89747 3.REMOVE WIRELESS DOOR LOCK BUZZER

a.

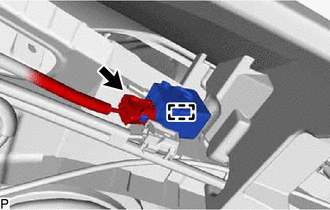

E371118

Disconnect the connector.


b.

Disengage the clamp to remove the wireless door lock buzzer.
