LIGHTING (EXT)  HAZARD WARNING SWITCH  REMOVAL


PROCEDURE

Hide 55405B 1.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 84330 2.REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

a.

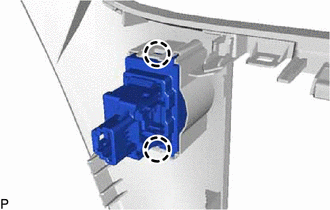

E355892

Disengage the 2 claws to remove the hazard warning signal switch assembly.
