BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS VEHICLE STABILITY CONTROL SYSTEM DTC CHECK / CLEAR
DTC CHECK/CLEAR (When Using GTS)
Check for DTCs.
Turn the engine switch off.
Connect the GTS to the DLC3.
Turn the engine switch on (IG).
Turn the GTS on.
Read the DTCs following the prompts on the GTS. Enter the following menus: Chassis / ABS/VSC/TRC / Trouble Codes.
- Chassis > ABS/VSC/TRC > Trouble Codes
- 50001 105
Check the details of the DTCs.
Clear the DTCs.
Turn the engine switch off.
Connect the GTS to the DLC3.
Turn the engine switch on (IG).
Turn the GTS on.
Operate the GTS to clear the codes. Enter the following menus: Chassis / ABS/VSC/TRC / Trouble Codes.
- Chassis > ABS/VSC/TRC > Clear DTCs
- 50002 105
Press the DTC clear button.
DTC CHECK/CLEAR (When Using SST Check Wire)
Check for DTCs.
Turn the engine switch off.

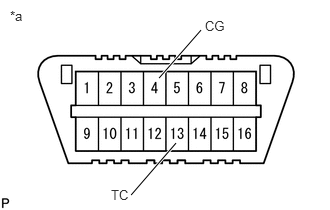

| *a | Front view of DLC3 |
Using SST, connect terminals TC and CG of the DLC3.
- SST
- 09843-18040
Turn the engine switch on (IG).
Observe the blinking pattern of the ABS warning and slip indicator lights in order to identify the DTC.
- HINT:
-
If the ABS warning and slip indicator lights do not blink, inspect the TC and CG terminal circuit, and ABS warning and slip indicator light circuits.
| Trouble Area | See procedure |
|---|---|
| TC and CG terminal circuit | ( )
|
| ABS warning light circuit (Remains on) | ()
|
| ABS warning light circuit (Does not come on) | ()
|
| Slip indicator light circuit (Remains on) | ()
|
| Slip indicator light circuit (Does not come on) | ()
|
Count the number of blinks of the ABS warning and slip indicator lights.
- HINT:
- ·
How to read DTCs:
Diagnostic trouble codes are represented by the number of blinks of a warning light. For example, code 21 would be shown by 2 blinks, a pause of 1.5 seconds, and then 1 blink.
·If one code is detected:
The light repeats the same code after a pause of 4 seconds.
·If multiple codes are detected:
The light outputs one code after another with a 2.5-second pause between each code.
When all codes have been output, there is a 4-second pause and then the light begins to output the codes again.
Check the details of the DTCs.
- ABS DTC:
ABS Warning Light Display Tester Display 11 C146E 12 C146F 13 C146C 14 C146D 21 C1468 22 C1469 23 C146A 24 C146B 25 C1225 31 C1401 C1405 32 C1402 C1406 33 C1403 C1407 34 C1404 C1408 35 C1413 36 C1414 38 C1415 39 C1416 41 C1241 C1417 43 C1243 44 C1419 C1442 45 C1245 46 C1421 C1422 C1423 C1424 49 C1425 51 C1427 C1428 91 C1361 94 U0073 95 U0124 97 C1381
- VSC DTC:
Slip Indicator Light Display Tester Display 31 C1432 C1433 C1434 32 C1232 34 C1435 C1436 C1443 36 C1210 39 C1336 43* - 51 C1201 53 C1203 63 U0126 65 C1437 U0100 66 C1290 C1439 C1445 98 C1440
*: This DTC is output when the VSC system detects a malfunction in the ABS.
After completing the check, disconnect terminals TC and CG of the DLC3 to turn off the display.
If 2 or more DTCs are detected at the same time, the DTCs will be displayed in ascending order.
Clear the DTCs.
Turn the engine switch off.
| *a | Front view of DLC3 |
Using SST, connect terminals TC and CG of the DLC3.
- SST
- 09843-18040
Turn the engine switch on (IG).
Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
Check that the ABS warning and slip indicator lights indicate the normal system code.
Remove SST from the terminals of the DLC3.
- HINT:
-
The DTCs cannot be cleared by disconnecting the battery terminal or the ECU-IG NO. 1 fuse.
END OF DTC CHECK/CLEAR
Turn the engine switch on (IG).
Check that the ABS warning and slip indicator lights go off within approximately 3 seconds of turning the engine switch on (IG).
