2ZR-FE ENGINE MECHANICAL DRIVE BELT INSTALLATION
PROCEDURE
16361A
1.INSTALL V-RIBBED BELT
a.
1.854,0.833 2.583,0.25
2.583,0.25 2.75,0.25
true
0.417,1.427 0.625,1.427
0.625,1.427 1.531,0.844
true
2.802,0.167 2.958,0.365
0.156,0.198
10
false
A
0.271,1.344 0.427,1.542
0.156,0.198
10
false
B
Set the V-ribbed belt onto every pulley.
b.

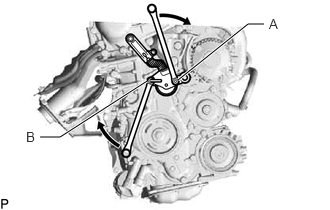

Attach a wrench to the hexagonal portion (A) or (B) of the V-ribbed belt tensioner assembly as shown in the illustration, and while rotating the V-ribbed belt tensioner assembly clockwise, remove the 5 mm hexagon wrench.
- NOTICE:
-
Check that the V-ribbed belt is properly set to each pulley.
16361A
2.INSPECT V-RIBBED BELT
11212
3.INSTALL NO. 2 CYLINDER HEAD COVER
51441C
4.INSTALL ENGINE UNDER COVER RH
5.INSTALL FRONT WHEEL RH
