SUPPLEMENTAL RESTRAINT SYSTEMS  STEERING PAD  INSTALLATION


PROCEDURE

Hide 45130 1.INSTALL HORN BUTTON ASSEMBLY

a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.



c.

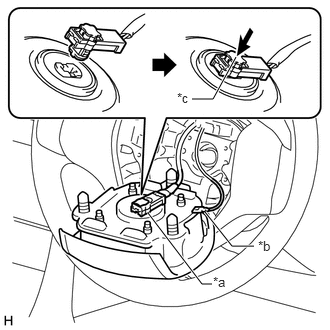

B356650C01
2.458,0.594 2.219,1.031 2.219,1.031 2,1.031 true 2.135,2.208 2.417,2.563 2.417,2.563 2.646,2.563 true 1.542,2.219 2.104,2.958 2.104,2.958 2.208,2.958 true 1.844,0.938 2.135,1.177 0.292,0.24 10 false *c 2.219,2.854 2.531,3.052 0.313,0.198 10 false *a 2.688,2.479 2.979,2.729 0.292,0.25 10 false *b
*a Airbag Connector
*b Horn Connector
*c Airbag Connector Lock


Connect the airbag connector to the horn button assembly.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.



d.

Push in the airbag connector lock to install the airbag connector.


e.

Connect the horn connector to the horn button assembly.


f.

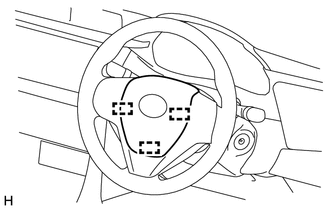

B356651

Push the horn button assembly to engage the 3 pins carefully.

NOTICE:
·

Make sure that the pins are securely inserted into the steering wheel assembly holes.

·

Make sure to engage the 2 upper pins first.

·

Make sure that the horn button assembly is securely installed.




Hide 45186 2.INSTALL LOWER NO. 2 STEERING WHEEL COVER

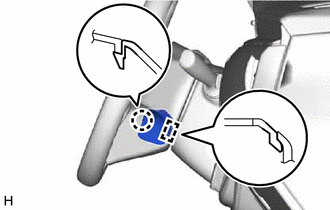

B345312

a.

Engage the guide and claw to install the lower No. 2 steering wheel cover.


Hide 3.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION


Hide 45130 4.INSPECT HORN BUTTON ASSEMBLY

a.

Make sure that the horn sounds.

If the horn does not sound, inspect the horn system.

Click hereVehicle Exterior>HORN>HORN SYSTEM>PROBLEM SYMPTOMS TABLE
