2ZR-FE BATTERY / CHARGING  GENERATOR  INSTALLATION


PROCEDURE

Hide 27020 1.INSTALL GENERATOR ASSEMBLY

a.

Install the wire harness clamp bracket with the bolt.

Torque:
8.4 N*m (86 kgf*cm, 74 in.*lbf)


b.

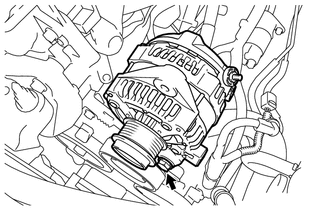

A282536

Temporarily install the generator assembly with the bolt.


c.

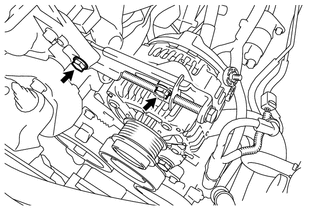

A282535

Temporarily install the adjusting bar with the 2 bolts.


d.

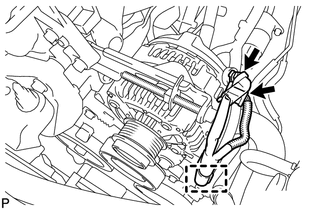

A258120

Connect the generator assembly connector and engage the wire harness clamp.


e.

Connect the wire harness to terminal B and install the nut.

Torque:
9.8 N*m (100 kgf*cm, 87 in.*lbf)


f.

Install the terminal cap.


g.

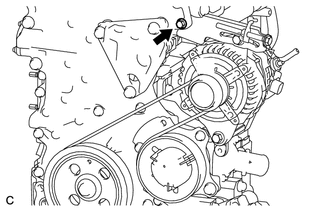

A205804

Tighten the bolt.

Torque:
25 N*m (255 kgf*cm, 18 ft.*lbf)


Hide 11212 3.INSTALL NO. 2 CYLINDER HEAD COVER

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>INSTALLATION

Hide 4.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION
