2ZR-FE ENGINE MECHANICAL DRIVE BELT INSTALLATION
PROCEDURE
16361A
1.INSTALL V-RIBBED BELT
a.
Install the V-ribbed belt.
16361A

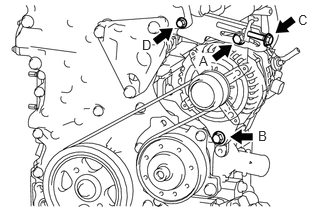

2.ADJUST V-RIBBED BELT
a.
2.073,0.552 2.229,0.75
0.156,0.198
10
A
2.688,1.333 2.844,1.531
0.156,0.198
10
B
3.104,0.125 3.26,0.323
0.156,0.198
10
C
1.479,0.385 1.635,0.583
0.156,0.198
10
D
Turn the bolt (C) to adjust the tension of the V-ribbed belt.
b.
Tighten the bolts (A) and (B).
- Torque:
- Bolt (A) : 25 N*m (255 kgf*cm, 18 ft.*lbf)
- Bolt (B) : 43 N*m (438 kgf*cm, 32 ft.*lbf)
- NOTICE:
-
Do not loosen the bolt (D).
16361A
3.INSPECT V-RIBBED BELT
11212
4.INSTALL NO. 2 CYLINDER HEAD COVER
51441C
5.INSTALL ENGINE UNDER COVER RH
a.
Install the engine under cover RH with the 4 bolts, 5 screws and 3 clips.
6.INSTALL FRONT WHEEL RH
