K313 CVT PARK / NEUTRAL POSITION SWITCH REMOVAL
PROCEDURE
1. PRECAUTION
- NOTICE:
-
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
-
Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- NOTICE:
-
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
-
Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION
11212
3.REMOVE NO. 2 CYLINDER HEAD COVER
17705
4.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
17701
5.REMOVE AIR CLEANER CASE SUB-ASSEMBLY
28800
6.REMOVE BATTERY
74411
7.REMOVE BATTERY CARRIER
33820B
8.SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY
Move the shift lever to N.
Remove the nut and separate the transmission control cable assembly from the control shaft lever.
Remove the clip and separate the transmission control cable assembly from the No. 1 transmission control cable bracket.
84540
9.REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

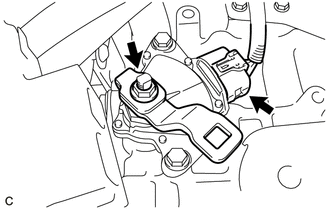

Remove the nut, washer and control shaft lever from the park/neutral position switch assembly.
Disconnect the park/neutral position switch assembly connector.

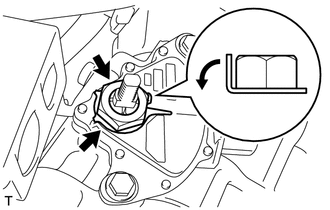

Using a screwdriver, pry out the lock plate and remove the lock nut and lock plate from the park/neutral position switch assembly.

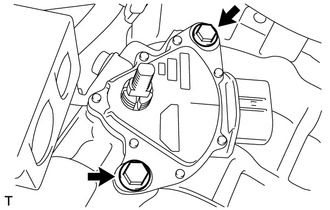

Remove the 2 bolts and park/neutral position switch assembly from the continuously variable transaxle assembly.
